Description
Mechanical ventilation is a way of providing respiratory support for animals who are unable to maintain ventilation or oxygenation on their own. It is used for a wide variety of conditions. Mechanical ventilation does not cure any disease, but it does support lung function to allow time to treat the underlying problem.
Features
- Respiration Mode: IPPV, SIMV, Manual
- Waveform: P-t (Pressure-time), V-t (Volume-time)
- Monitoring Parameters: TV (tidal volume), MV (minute ventilation), AP (airway pressure)
Technical Specifications

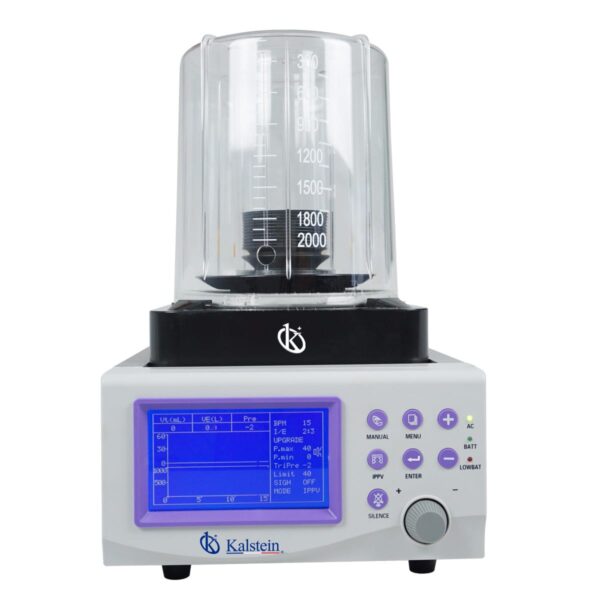

| Model | YR06102 |
| Respiration mode | IPPV, SIMV, MANUAL |
| Display | 5.5′ SNT screen |
| Waveform | P-t, V-t |
| Tidal volume | 0,50ml～1600ml |
| Respiratory frequency | 1 to 65 BPM |
| I:E ratio | 8:1～1:8 |
| Alarm parameters | High pressure alarm,Low pressure alarm,O2 source lost alarm ,AC power lost alarm |
| High Pressure alarm limit | 20～60cmH2O |
| Low Pressure alarm Limit | 0～20cmH2O |
| Monitor Parameters | Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E ratio |
| Safety valve pressure limit | 6Kpa |
