Description

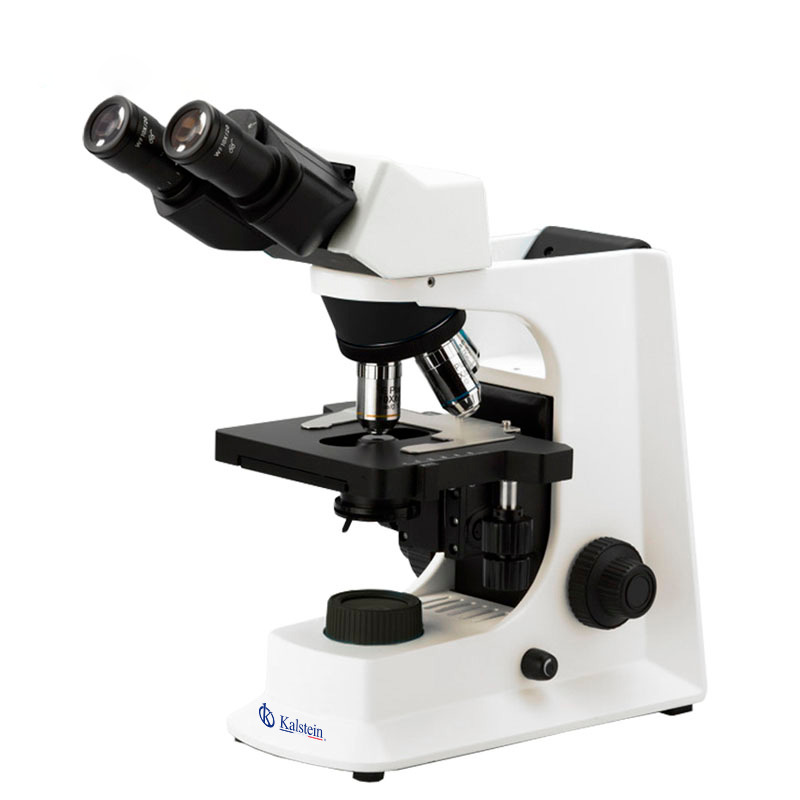

The Plan d’infini binoculaire de microscope biologique de laboratoire YR05787 – YR05788 is a high-performance laboratory microscope designed for professionals seeking precision and reliability in biological observation. With a binocular head inclined at 30° and rotatable at 360°, it ensures comfortable and versatile usage. Its interpupillary distance ranges from 48-75 mm, accommodating various user preferences. The microscope is equipped with four objective lens sets, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, making it highly adaptable for different research needs. Additionally, its integrated design enhances ocular performance while preventing contamination and loss.
Market Price
The laboratory microscope market offers a range of options, with prices varying significantly based on specifications and brand. For a model like the Plan d’infini binoculaire YR05787 – YR05788, you can expect a price range from $900 USD to $1700 USD. This offers a competitive pricing considering its advanced features and capabilities.
Frequently Asked Questions
Q: What type of illumination does this microscope use?
A: It utilizes a 3W LED lighting system for clear, bright viewing.
Q: Can it accommodate different objective lenses?
A: Yes, it supports several lens options, including Achromatic and Infinity Plan lenses.
Advantages and Disadvantages
Advantages: The microscope’s flexibility with interchangeable lenses, robust LED lighting, and ergonomic design make it a valuable tool in laboratory environments. Disadvantages: The complexity of options might require additional training for optimal use.
Product Use in the Field
Designed for laboratory research, the microscope finds application in biological studies, medical labs, and educational institutions. Its adjustable features allow for detailed examinations of specimens, tissues, and microorganisms, making it indispensable in precise scientific observation.
Recommendations
To extend the lifespan and performance of your microscope, ensure regular cleaning and calibration. Utilize a dust cover when the device is not in use to prevent lens contamination. For more information or to generate a quote, consider visiting the Kalstein Plus platform and see all benefits.
Features

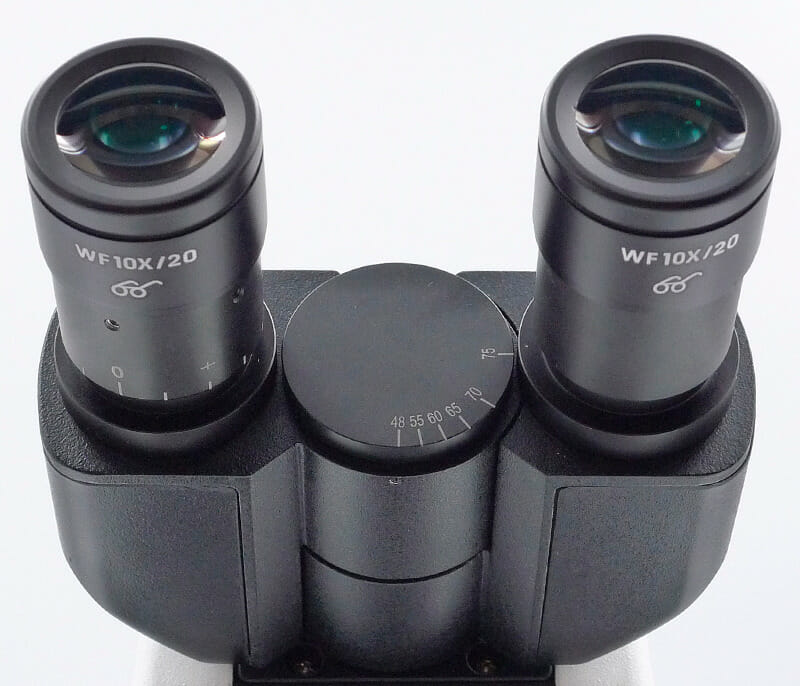

- 30° inclined binocular head, 360° rotatable.
- Interpupillary distance of 48-75 mm.
- Integrated ocular objective barrel design.
- LED illumination system with 3W power.
- Mechanical stage with precise 0.1 mm graduations.
Technical Specifications
| Model | Catalog No. | YR05787 | YR05788 | |
| Head | Binocular Seidentopf head, 30° inclined, 360° rotatable, interpupillary distance of 48-75 mm | YR05788-op1 | ● | ○ |
| Trinocular Seidentopf head, 30° inclined, 360° rotatable, fixed light division P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (high-eye point) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, inverted | YR05788-op4 | ● | ● |
| Quintuple, inverted | YR05788-op5 | ○ | ○ | |

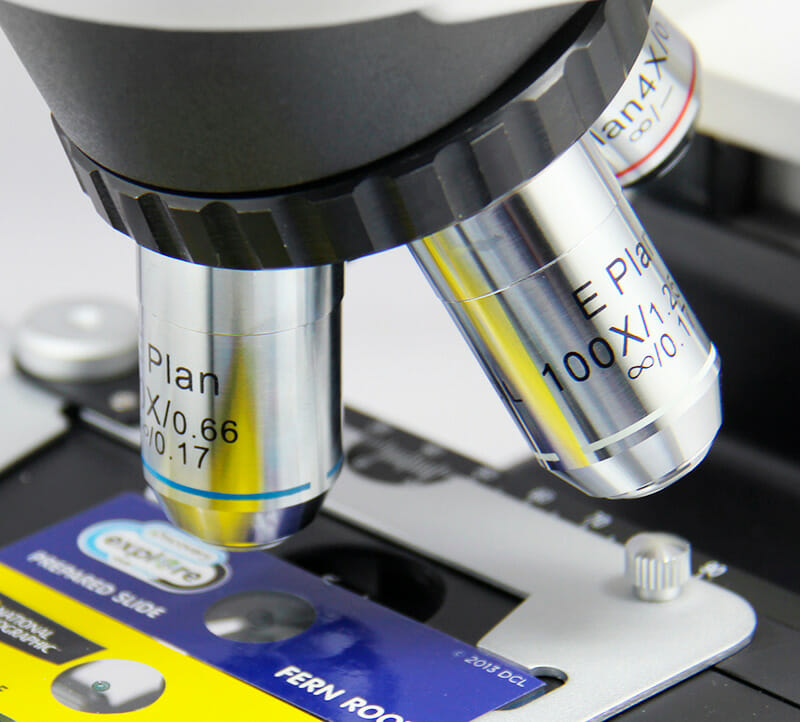

| Infinity Plan Objectives | PLAT 2.5x/0.07, band width = 8.47 mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.WD=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.WD=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).WD=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).WD=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).WD=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).WD=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).WD=0.19mm | YR05788-op13 | ○ | ○ | |

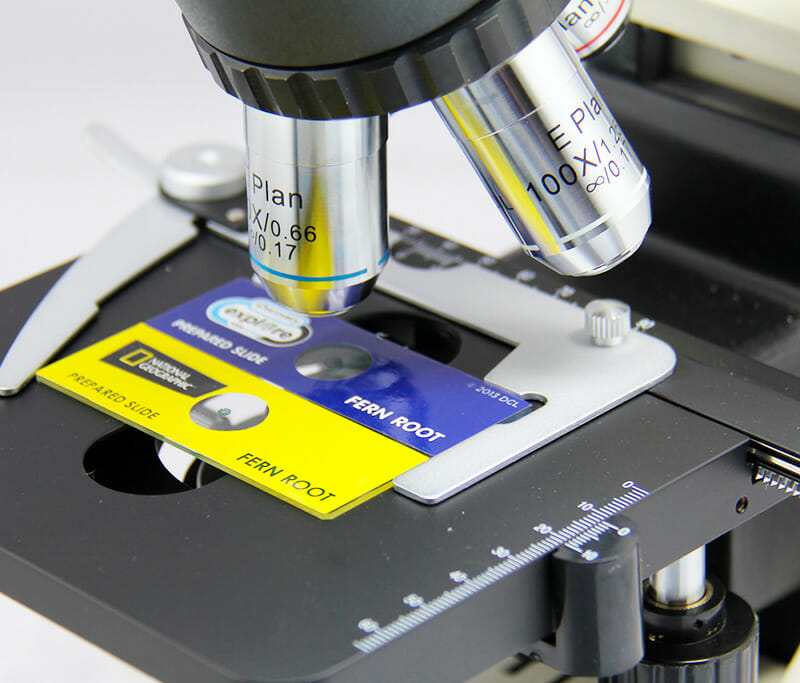

| Working Stage | Mechanical stage size: 145 mm × 140 mm, travel range: 76 mm × 52 mm, scale: 0.1 mm, double slide mounting | YR05788-op14 | ● | ● |
| Stage without frame (integrated), size 140 × 135 mm, | YR05788-op15 | ○ | ○ | |
| Travel range 75 × 35 mm, double slide mounting | – | |||

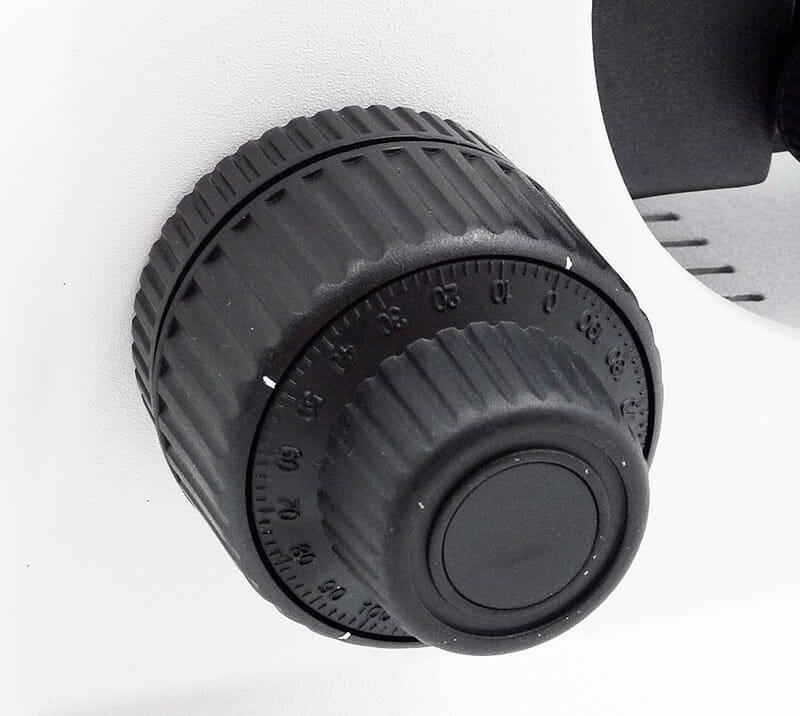

| Focusing | Coaxial coarse and fine focusing, coarse focusing range: 26 mm, fine focusing range: 2 µm/division | YR05788-op16 | ● | ● |

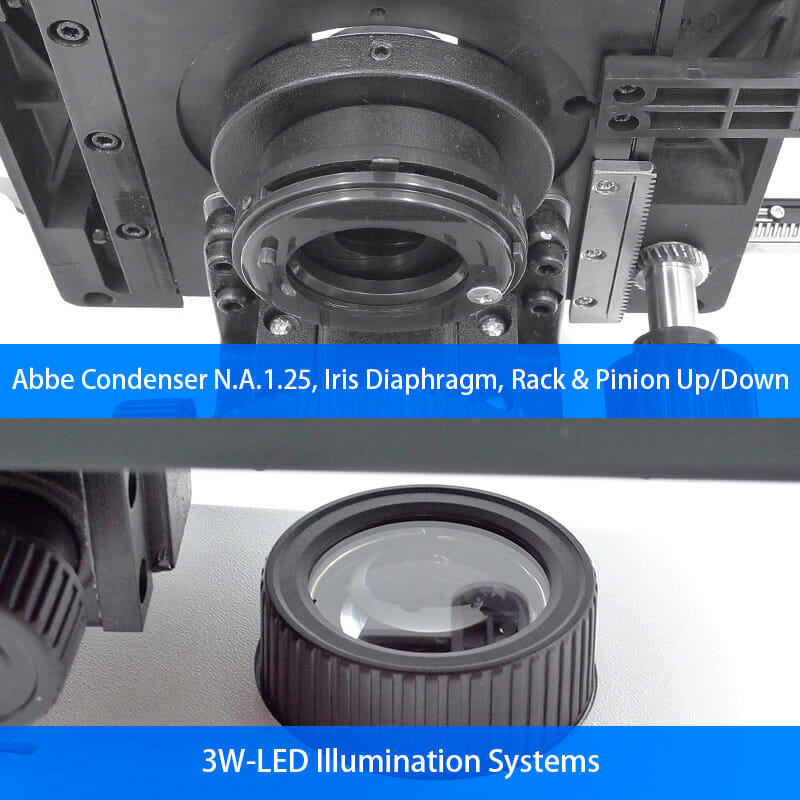

| Condenser | NA1.25 Abbe Condenser, Iris Diaphragm, Rack and Pinion Up/Down, with Filter Holder | YR05788-op17 | ● | ● |
| Illumination | LED illumination systems 3W | YR05788-op18 | ● | ● |

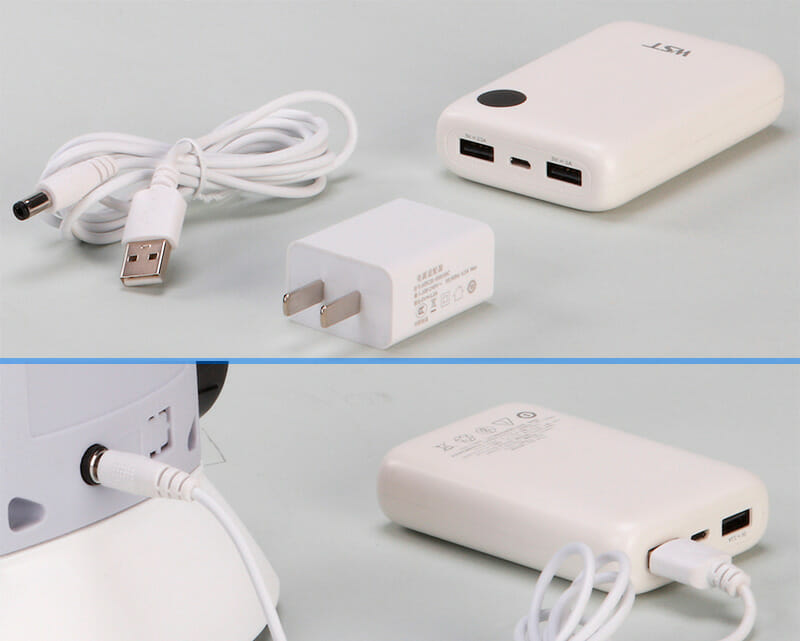

| Powered by a low voltage safety charger, wide input voltage 100V-240V, output 5V 1A, external power supply compatible for outdoor use | – | |||
| Halogen lamp 12V/20W, wide voltage power supply 100V ~ 240V | YR05788-op20 | ○ | ○ | |
| Halogen lamp 6V/30W, wide voltage power supply 100V ~ 240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Switch to Kohler illumination | YR05788-op22 | ○ | ○ |
| Filter | 45 mm diameter, blue | YR05788-op23 | ○ | ○ |
| 45 mm diameter, green | YR05788-op24 | ○ | ○ | |
| 45 mm diameter, yellow | YR05788-op25 | ○ | ○ | |
| Darkfield | Black background condenser, dry, NA0.83-0.91, for objective 4x10x40x | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + polarizer set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret phase contrast accessory | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, 5-hole turret phase contrast condenser, telescope 11x, green filter | – | |||
| Adapter | C mount 0.5x, adjustable focus | YR05788-op33 | ○ | ○ |
| C mount 0.75x, adjustable focus | YR05788-op34 | ○ | ○ | |
| Mirror | Reflective mirror and holder | YR05788-op35 | ○ | ○ |

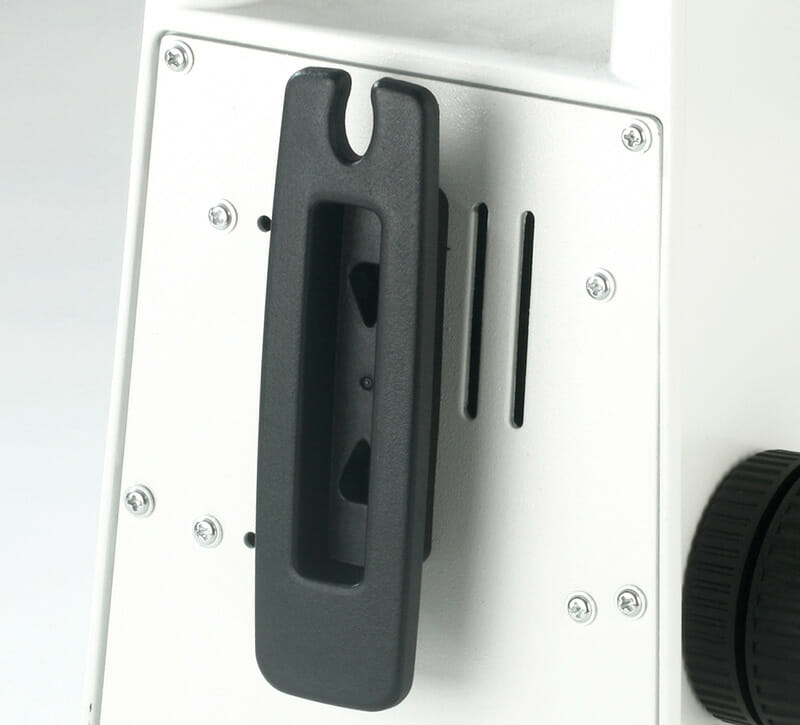

| Attachment | Winding wire device | YR05788-op36 | ○ | ○ |
| Package | Box size 390×280×450 mm, 1 unit/box | |||
| Weight | Gross weight: 7.5 kg, net weight: 6.5 kg | |||
| Note: « ● » in the table are standard sets, « ○ » are optional accessories | ||||
