Non-contact spectrophotometer YR05481

ManufacturerKalstein

Description

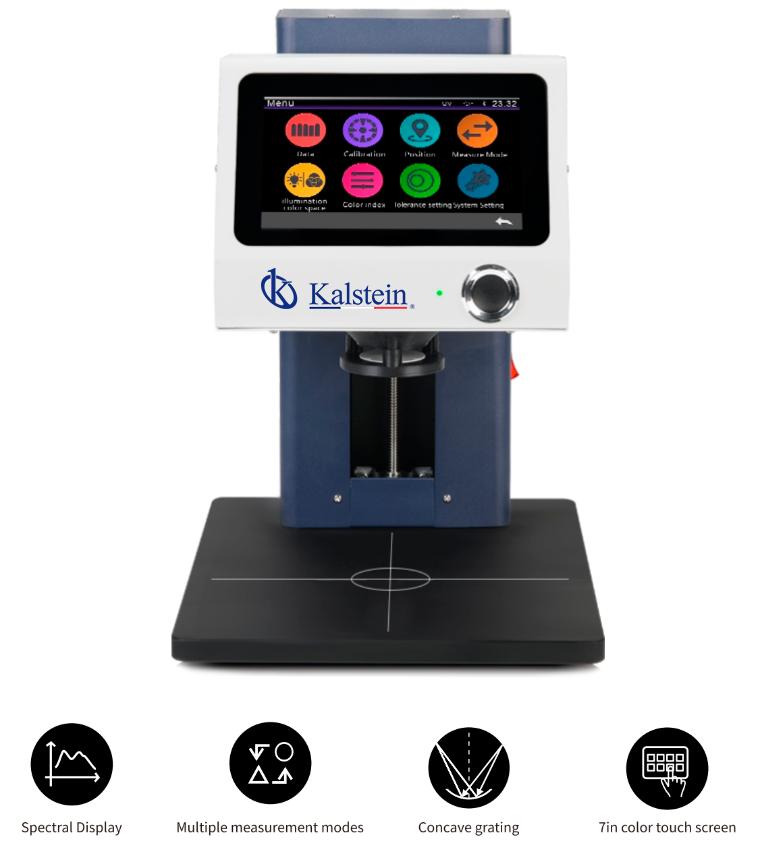

The YR05481 spectrophotometer is an advanced color measurement solution that adopts the D/8 optical standard, specifically designed to ensure precision in non-contact color analysis. This device stands out for its ability to perform measurements on powder and other unconventional materials, providing a significant advantage in industrial and R&D environments. Equipped with a full-spectrum LED light source and a high-precision CMOS image sensor, this spectrophotometer delivers stable and high-fidelity results on any sample type. Additionally, its 7-inch touch interface allows for easy operation and real-time data display, making quality control simpler in automated production lines and in laboratories that require consistent precision.

Market Price

The YR05481 non-contact spectrophotometer is positioned in the mid-to-high price range for products in its category, ranging from $9,870 to $10,000 USD, depending on configurations and customized accessories. This range is competitive, especially compared to leading brands, making this model a solid investment for industries where accuracy and measurement stability are essential. Request a detailed quote through the Kalstein Plus platform and receive a proposal tailored to your needs.

Frequently Asked Questions

  • Is this spectrophotometer suitable for automated production lines?
    Yes, it is designed for integration in production lines due to its non-contact system and high precision.
  • What are the data storage options?
    It can store up to 48,000 measurements, combining sampling and statistical modes.
  • Is the measurement height adjustable?
    Yes, the head can be adjusted up to 160 mm to adapt to different sample types.
  • What measurement modes does it offer?
    It includes sampling, quality control, and continuous statistics modes for various applications.

Advantages and Disadvantages

This model offers multiple advantages, such as non-contact precision measurement, adjustable height for various samples, and extensive storage capacity. However, it may not be ideal for uncontrolled high-humidity environments, as its optimal range is up to 85% without condensation.

Field Use

The YR05481 is perfect for industries such as cosmetics, food, and ceramics, where color measurement of irregular and moving surfaces is essential. Thanks to its precise, non-contact measurement capability, it allows stable and reproducible data, which is crucial for quality control of products that require strict color and visual appearance standards.

Recommendations

To maintain its effectiveness, it is recommended to perform periodic calibrations and ensure that the measurement height is correctly adjusted according to the sample size. Moreover, it is ideal to use it in controlled environments to guarantee an extended lifespan of the light source and internal components.

Take advantage of this opportunity to optimize your quality control processes by requesting a personalized quote through Kalstein Plus, and experience the benefits of a high-precision spectrophotometer in your operations.

Technical Specifications

Model YR05481
Optical Geometry D/8 (diffuse illumination, receiving in 8° direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7
Light Source Full spectrum LED light source
Spectrophotometric Mode Concave Grating
Sensor 256-pixel dual-array CMOS image sensor
Wavelength Range 400-700nm, 10nm output
Measured Reflectance Range 0-200%
Measuring Aperture 020mm (010mm can be customized)
Non-contact distance 3.0mm(+0.2mm)
Sample height 0-160mm (Using the original support base plate)
 Distance adjustment method Manual adjustment (storable test height)
Measurement mode Sample mode, quality control mode, continuous statistics mode
Locating Camera locating
Color Space CIE LAB,XYZ,Yxy, LCh,CIE LUV, Musell,s-RGB, HunterLab,Bxy,DIN Lab99
Color Difference Formula AE*ab,AE*94,AE*cmc(2:1),4E*cmc(1:1),4E*00,4E (Hunter), DINAE99
Other Colorimetric Index WI(ASTM E313, CIE/ISO,AATCC,Hunter), YI(ASTM D1925,

ASTM 313),, Metamerism index MI,Staining Fastness, Color

Fastness, Strength, Opacity

Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,075,F1,F2(CWF),

F3,F4,F5,F6,F7(DLF),F8,F9, F10 (TPL5),F11(TL84),F12(TL83/U30)

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference

Values/Graph, Color simulation, pass/fail result, display tolerance can

be set

Measuring Time Fast mode about 1.0s (0.2-1.5s adjustable)
Data Storage Sample mode + quality control mode 18,000;Continuous statistical

mode 30,000, totaling no more than 48,000

Repeatability In the optimal measurement mode (when a single measurement time is

1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity

value: AE*ab within 0.04(After the instrument is warmed up and calibrated, measure

the average value of the whiteboard 30 times at an interval of 5s)

Inter-instrument Error Within AE*ab 0.25(Measured average value of 12 tiles of BCRA series II)
Measurement method  Single measurement, average measurement (2-99 times)
Dimension 330*250*370mm
Weight About 10Kg
Power AC 24V, 3A Power adapter power supply
illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Language Simplified Chinese, Traditional Chinese, English
Operating Environment 0~40°C, 0-85%RH (no condensation), altitude: less than 2000m
Storage Environment -20~50°C, 0-85%RH (no condensation)
Standard Accessory Power adapter, manual, data cable, standard calibration board,

black calibration box

 Notes This model is specially suitable for streamlined production lines, in-depth function

customization will incur additional customization costs







Additional information

Weight 13.1 kg
Dimensions 47 × 52 × 35 cm
