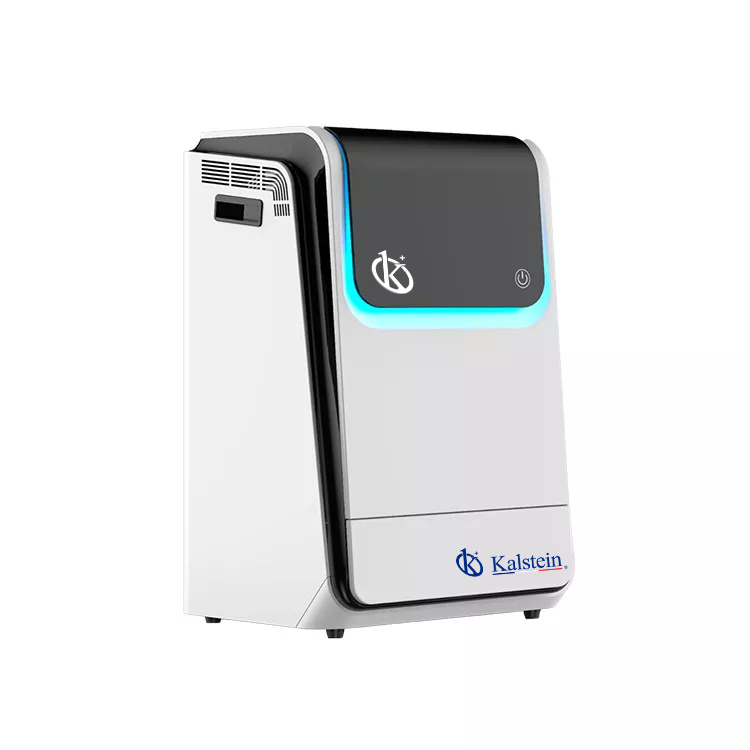

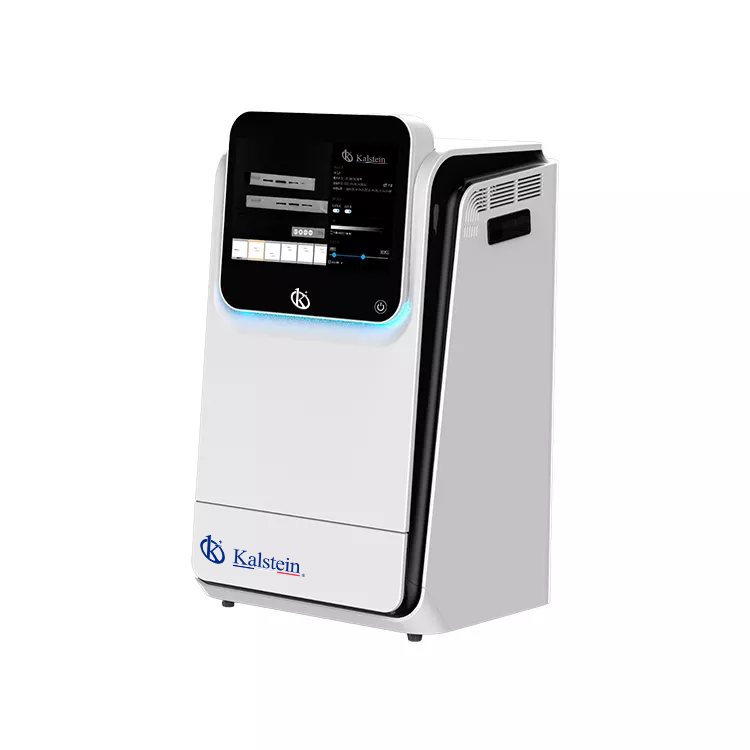

Multifunctional Imager YR06210-YR06211
Multifunctional Imager YR06210-YR06211 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
Multifunctional Imager YR06210-YR06211 offers top-tier performance with exceptional ease of use, designed for visible light (RGB) and far red/near infrared (FR/NIR) fluorescence and chemiluminescence detection, along with comprehensive gel documentation applications. This advanced imaging system features electronic lifting platforms, allowing precise adjustments to capture areas for various sample sizes. An optional removable PC enhances flexibility and speed, effectively mitigating any risks associated with embedded Windows Pads.
Price in the Market
When considering similar high-performance imaging devices, the price range typically varies significantly. For the Multifunctional Imager YR06210-YR06211, the market price tends to be in the range of $2,107,600 to $2,108,400 USD. This approximation positions the device in a competitive bracket, reflecting its advanced features and robust capabilities. To get precise pricing or a tailored quotation, we recommend visiting our platform, Kalstein Plus, for automatic quoting options.
Frequently Asked Questions
- Is the software included with the purchase? Yes, the SHST Capture and Analysis Software is included and supports an unlimited number of users.
- Can the Imager be used for all types of gel documentation? Absolutely, it supports a wide range of applications including chemiluminescence imaging, fluorescent Western blotting, and more.
- Do I need special training to use the device? The intuitive software design ensures ease of use, but we offer training sessions if needed to enhance proficiency.
Advantages and Disadvantages
The Multifunctional Imager YR06210-YR06211 boasts numerous advantages such as high sensitivity due to its cooled digital camera, a versatile electronic lifting platform, and user-friendly software that allows unlimited access. However, potential users should consider the initial investment cost, as the high-end features come with a corresponding price tag.
Product Use in Field
This imaging system is indispensable in research laboratories for capturing detailed images needed in experiments like Western blotting and fluorescence imaging. Its electronic lifting platforms ensure high adaptability to different membrane sizes, making it a versatile tool for precise and diverse applications.
Recommendations
To maintain optimal performance of the Multifunctional Imager YR06210-YR06211, regular maintenance of the electronic components and lenses is recommended. Ensure the device is used within the set temperature parameters to prolong its lifespan. Don’t forget to periodically update the software for enhanced features and compatibility.
Features
- Super sensitive cooled digital camera for high fidelity imaging.
- Electronic lifting platforms for versatile sample handling.
- Optional removable PC for flexibility and ease of use.
- Intuitive software supporting unlimited users.
- Wide range of imaging applications including chemiluminescence and fluorescence.
Technical Specifications
| Model | YR06210 | YR06211 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
Spécifications techniques
| Dimensions | L 52 × W 56 × H 110 cm |
|---|---|
| Poids | 50 kg |
| Fabricant | Kalstein |
Galerie d'images
Questions fréquentes
Comment connaître les prix de Multifunctional Imager YR06210-YR06211 ?
Pour connaître le prix de Multifunctional Imager YR06210-YR06211, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Multifunctional Imager YR06210-YR06211 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Multifunctional Imager YR06210-YR06211 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Multifunctional Imager YR06210-YR06211 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Multifunctional Imager YR06210-YR06211 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
