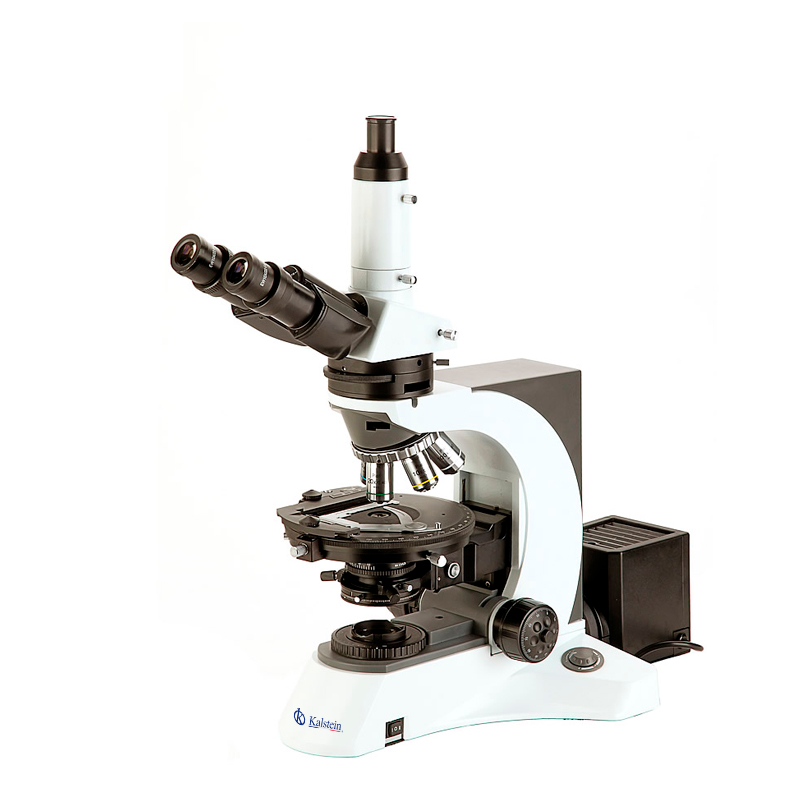

Polarizing Microscope YR0261
Polarizing Microscope YR0261 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Polarizing Microscope YR0261 is an advanced instrument designed for precise and sophisticated optical analysis. It features a quintuple nosepiece that is center adjustable, offering strain-free infinity plan objectives ranging from 4x to 100x. With a round stage and a 170mm diameter that is fully adjustable, this microscope ensures exceptional versatility for polarizing applications. Additionally, it comes equipped with an analyser unit that includes a Bertrand lens, λ slip, 1/4λ slip, and quartz wedge, providing comprehensive polarizing solutions. Its 24V100W halogen illumination system offers adjustable brightness to capture the finest details with utmost clarity.
Market Price
The Polarizing Microscope YR0261 is situated within the premium segment of the market with prices ranging from approximately $297,500 to $298,100. This range reflects its high-end capabilities and cutting-edge technology, making it a prime choice for laboratories and research institutions aiming for superior analytical performance.
Frequently Asked Questions
What type of studies is the Polarizing Microscope YR0261 suitable for? This microscope is perfect for geological, biological, and chemical studies where polarizing light is used to examine minerals, biological tissues, and other specimens.
Does the microscope come with a camera adapter? Yes, it includes a photo adapter and a C-Mount 1.0x for connecting a camera, making image capturing and analysis straightforward.
Advantages and Disadvantages
Advantages: The Polarizing Microscope YR0261 provides excellent clarity with its infinity-corrected optical system. The adjustable stage and high illumination capacity enhance its usability, while various objective lenses ensure detailed observation.
Disadvantages: With its advanced features, this microscope requires a significant investment, and its comprehensive setup might be complex for beginners.
Product Usage in the Field
In practical scenarios, the Polarizing Microscope YR0261 is invaluable for professionals in geology and materials science. Its capability to switch between orthoscopic and conoscopic observations allows users to analyze birefringent materials with precision. Its robust design facilitates both educational demonstrations and detailed research activities in varied scientific disciplines.
Recommendations
To maximize performance, ensure regular calibration of the lenses and polarizing components. Utilize the full potential of the 360° rotatable stage for comprehensive analysis and maintain the cleanliness of optical components to prevent data distortion. For further insights and personalized advice, connect with a specialist through Kalstein Plus for a tailored experience.
Features
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives: 4x, 10x, 40x, 100x
- Round Stage, Dia.170mm Center Adjustable
- Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable
- Seidentopf Trinocular Head with 30° Inclination
- Inter Pupillary Distance: 48~75mm, Adjustable Diopters
- Plan Eyepieces with Cross, Crosshair, and Gridding Options
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Netural Filter ND25 | YR0261-op1 |
| Netural Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

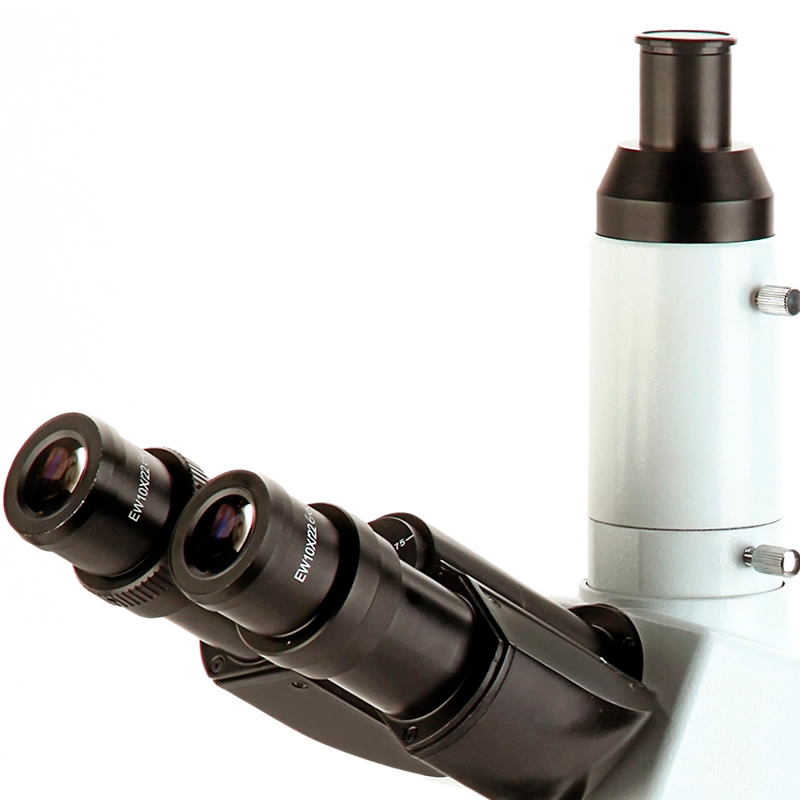

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||

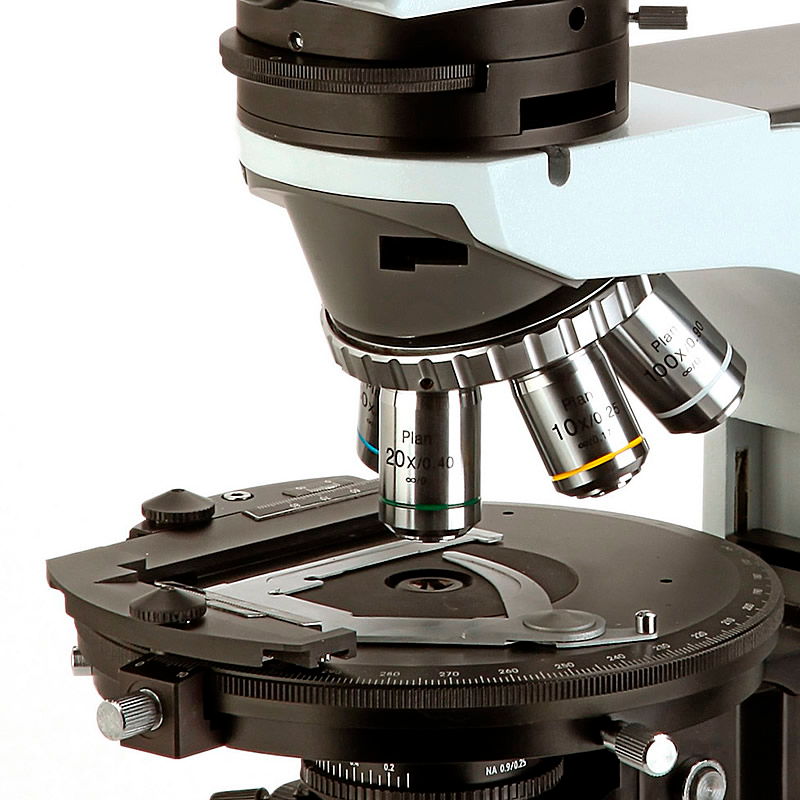

| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Postion Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6′ By Means of Vernial Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

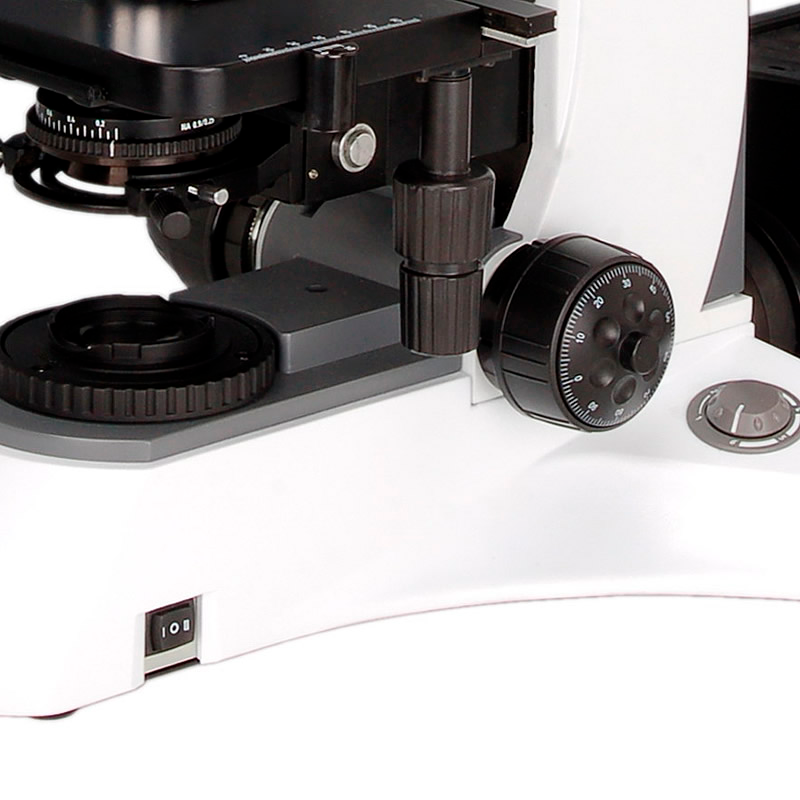

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
Spécifications techniques

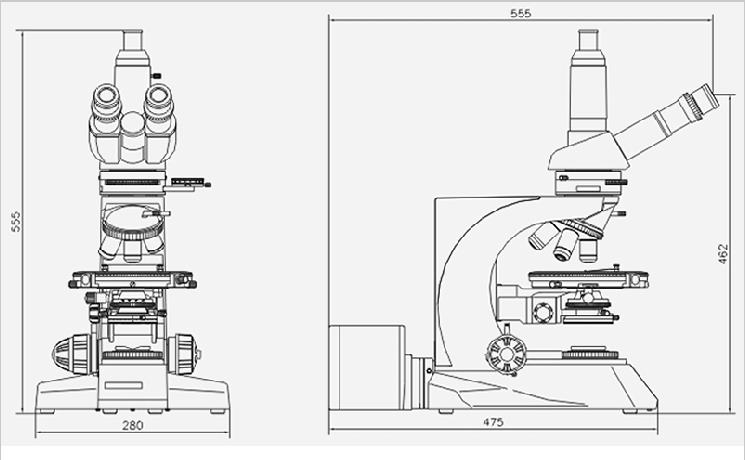

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Poids | 16.5 kg |
| Fabricant | Kalstein |
