Description
Experience unparalleled optical performance with the Microscope Stéréoscopique à Zoom YR0246 / YR0248, equipped with an infinity parallel optical system. Its ultra-thin LED lighting offers uniform illumination, boasting a lifespan of 6,000 hours, suitable for both incident and transmitted light. This microscope is versatile and can be extensively applied in scientific research, industry, biology, and medical fields, thanks to its comprehensive array of accessories. Designed with ergonomic principles, it ensures comfortable use. Moreover, its wide zoom range of up to 1:10, combined with a user-adjustable viewing angle from 0° to 35°, caters to precise and flexible observation.
Market Price
In the current market, the average price range for microscopes similar to the Microscope Stéréoscopique à Zoom YR0246 / YR0248 is between $3,000 and $4,000. This range reflects the high-quality components and advanced features these microscopes offer, making them a valuable investment for professionals and researchers.
Frequently Asked Questions
What are the main applications of this microscope? The microscope is widely used in scientific research, industrial inspections, biological studies, and medical fields, thanks to its advanced optical features and versatile accessories.
How long does the LED lighting last? The built-in LED lighting is designed to last up to 6,000 hours, providing consistent illumination for all your observation needs.
Advantages and Disadvantages
The primary advantages of the Microscope Stéréoscopique include its superior optical performance, ergonomic design, and versatile application across multiple fields. However, a potential drawback might be its premium price, which reflects the high quality and advanced technology it offers.
Product Use in the Field
In practical applications, this microscope is utilized for detailed examinations in laboratories, quality control in manufacturing, and detailed analysis in both biological and medical research. Its adjustable features and wide zoom range make it a preferred choice for professionals requiring precision.
Recommendations
To maximize the lifespan and efficiency of your microscope, it’s recommended to perform regular maintenance checks and keep it clean. Consider using the full range of available accessories to enhance its functionality and tailor it to specific research needs.
Features
- Infinity parallel optical system for unmatched performance.
- Ultra-thin LED lighting with 6,000 hours lifespan for both incident and transmitted light.
- Comprehensive accessory range for versatile applications in science and industry.
- Comfortable use with an ergonomic design concept.
- User-adjustable viewing angle from 0° to 35°.
- Zoom range up to 1:10 for extensive magnification needs.
Technical Specifications
Model | YR0246 | YR0247 | YR0248 | |
Optical System | Infinity parallel optical system, module design for easy function addition | ● | ● | ● |

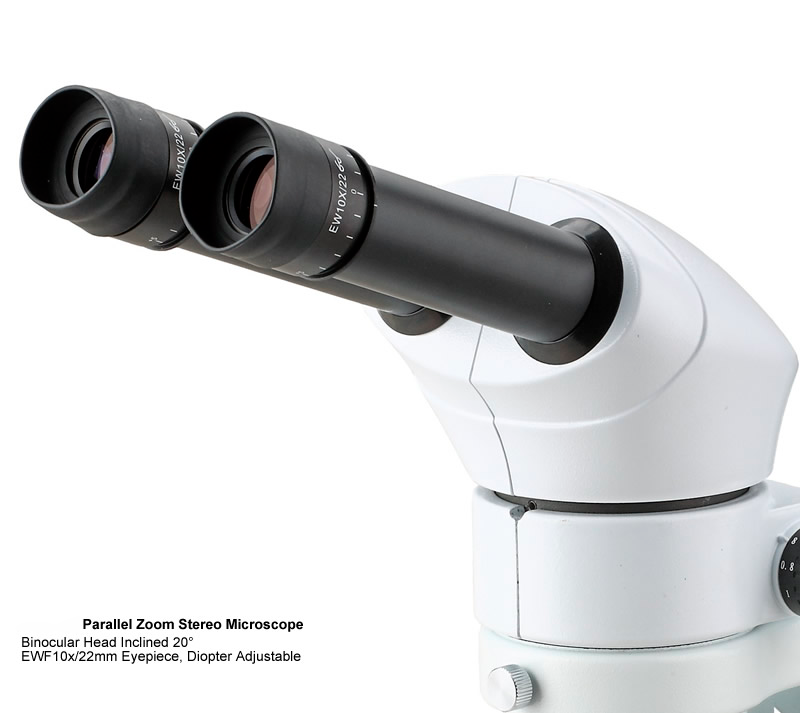

Head | Binocular head inclined at 20° | ● | ● | ● |
User-adjustable viewing angle from 0° to 35° | o | o | o | |
Eyepiece | Extra wide eyepiece EWF10x/22mm, adjustable diopter, interpupillary 55-75mm | ● | ● | ● |
Body Zoom | 0.8 ~ 5.0x, zoom ratio 1:6 | ● | – | – |
0.8 ~ 6.4x, zoom ratio 1:8 | – | ● | – | |
0.8 ~ 8.0x, zoom ratio 1:10 | – | – | ● | |

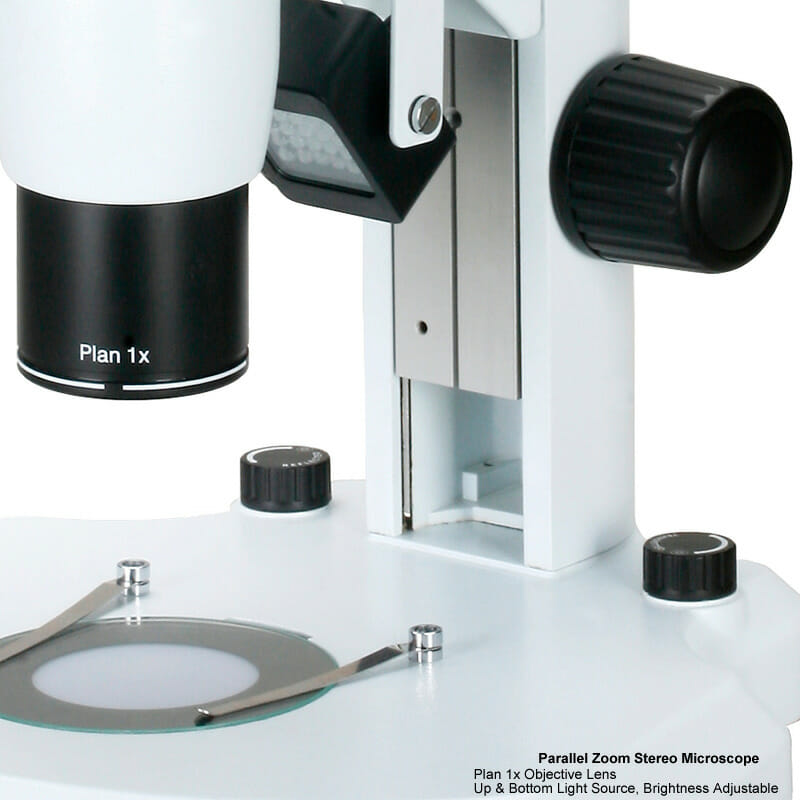

Auxiliary Lens | Flat achromatic lens 1.0x | ● | ● | ● |
Working Distance | 78mm | ● | ● | ● |
Focus | Coarse focusing knob, range 105 mm | ● | ● | |
Coaxial coarse and fine focusing knob, fine division 0.015 mm, coarse movement 38.4 mm/rotation, fine movement 1.5 mm/rotation, movement range 105 mm, focus support inner diameter 76mm | ● | |||
Lighting | Transmission and reflection LED lighting, adjustable brightness, 6,000-hour lifespan | |||

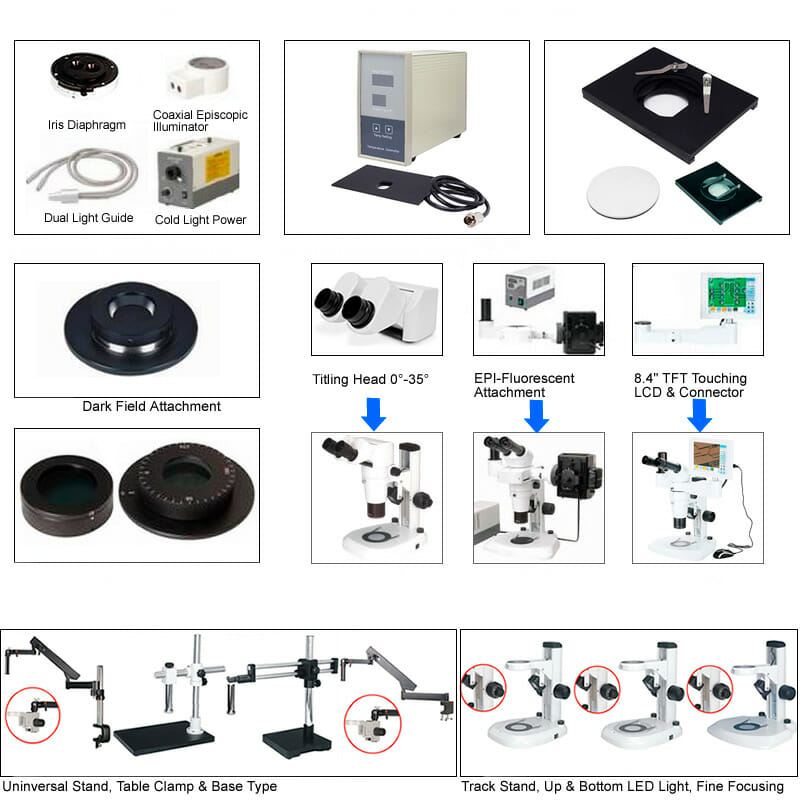

Model | Catalog No. | |||
Head | User-adjustable viewing angle from 0° to 35° | YR0248-op1 | ||
Change model to A23.1005 | ||||
Eyepiece | WF15x/16mm | YR0248-op2 | ||
WF20x/12mm | YR0248-op3 | |||
WF30x | YR0248-op4 | |||
Auxiliary Lens | Plan apochromatic objective 0.5x | YR0248-op5 | ||
Flat achromatic lens 1.0x | YR0248-op6 | |||
Flat achromatic lens 2.0x | YR0248-op7 | |||
Achromatic lens 0.3x | YR0248-op8 | |||
Achromatic lens 0.5x | YR0248-op9 | |||
Lighting | Coaxial lighting set: | YR0248-op4 | ||
– Cold light power supplier, | ||||
– Dual light guide, | ||||
– Coaxial episcopic illuminator, | ||||
– Iris diaphragm | ||||
Iris diaphragm | YR0248-op5 | |||

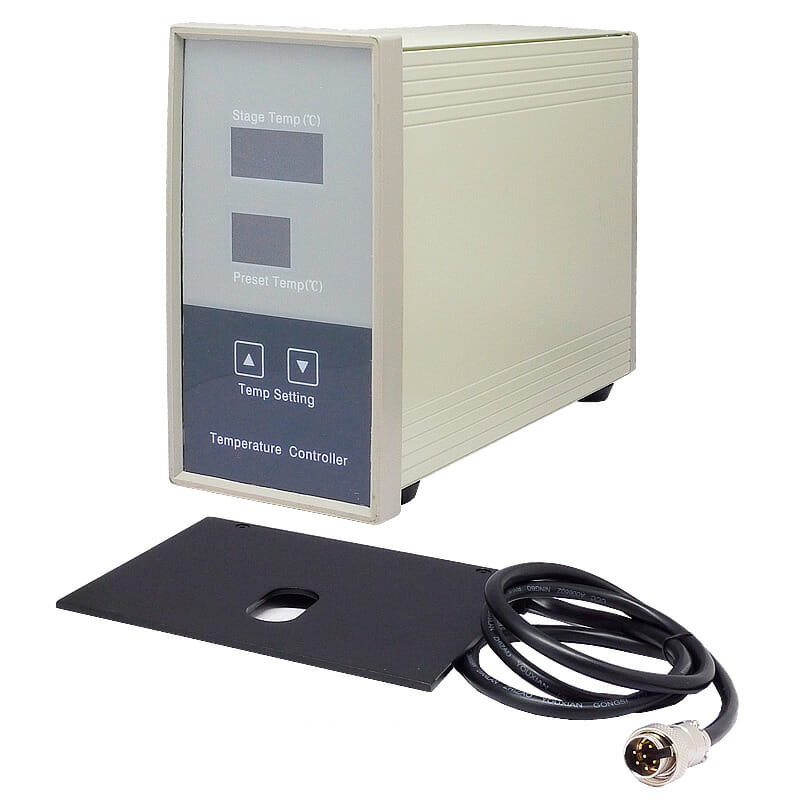

Work Stage | Temperature control stage | YR0248-op6 | ||

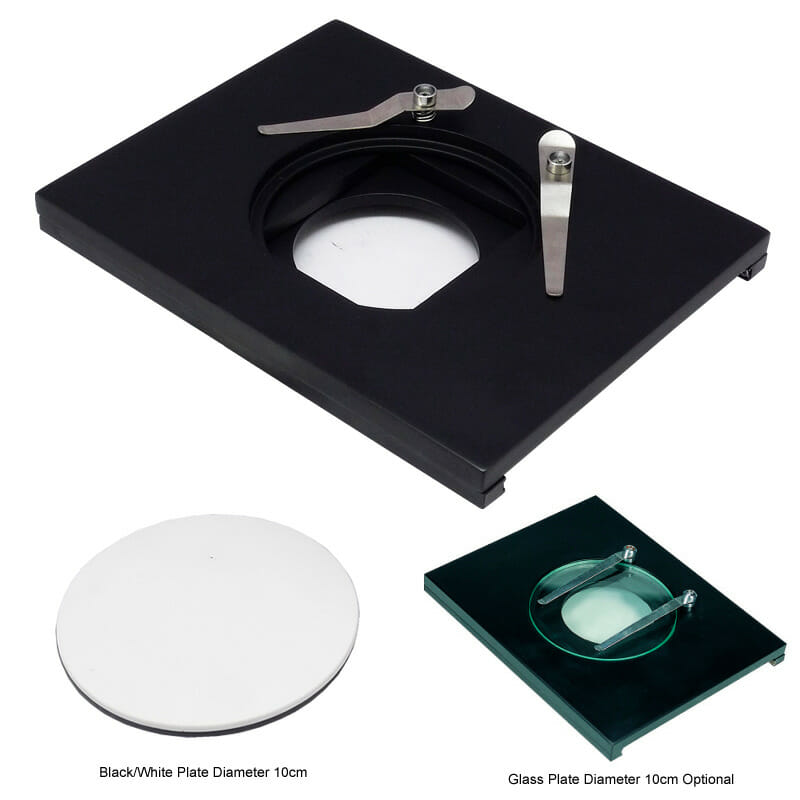

Mobile work stage | YR0248-op7 | |||
Stand | Universal table stand | YR0248-op8 | ||
YR0248-op9 | ||||
Track stand, transmission and reflection light source | YR0248-op10 | |||
With optional coarse and fine focusing, model -F, like A54.1019-F | YR0248-op11 | |||
YR0248-op12 | ||||
YR0248-op13 | ||||
YR0248-op14 | ||||

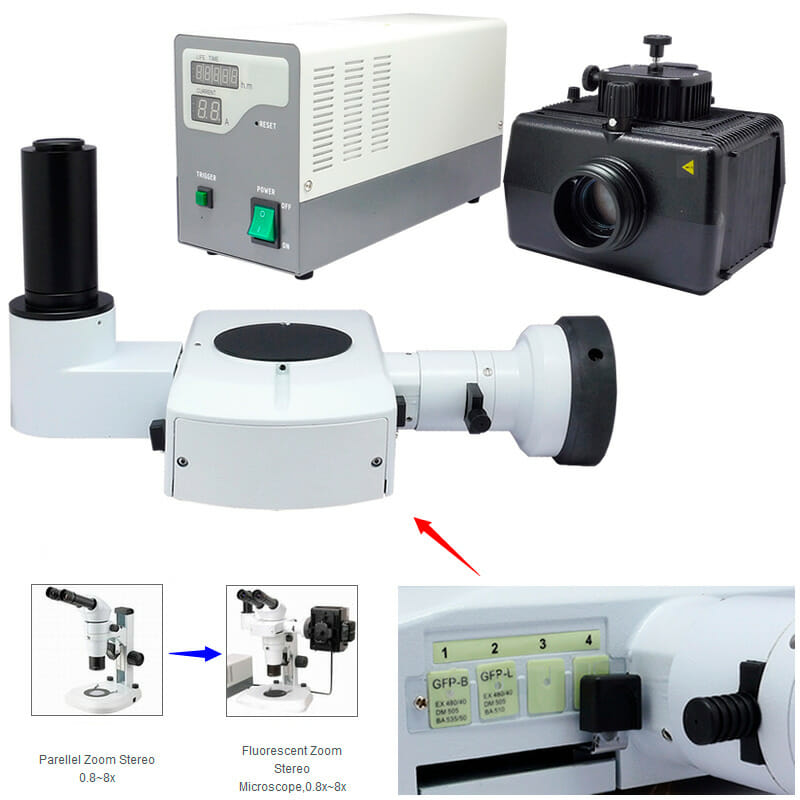

Fluorescence | EPI-fluorescence accessory for stereomicroscope | YR0248-op15 | ||
Dark Field | Dark field accessory for stereomicroscope | YR0248-op16 | ||
Polarization | Simple polarization accessory for stereomicroscope | YR0248-op17 | ||
LCD Screen | Connector and LCD monitor with 8.4″ TFT touchscreen | YR0248-op18 | ||

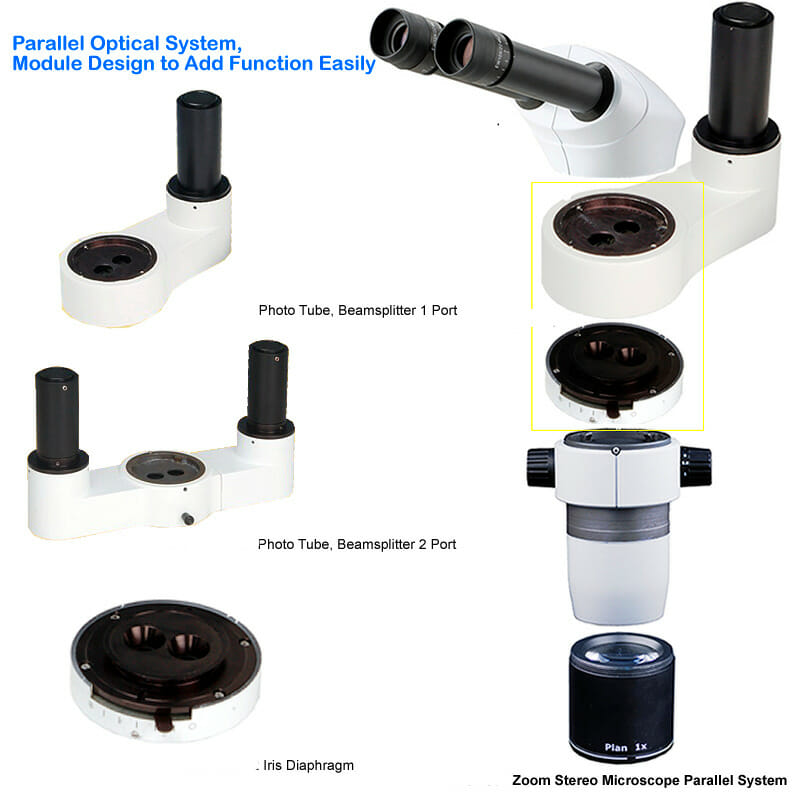

Adapter | Photo tube, 1 port beam splitter | YR0248-op19 | ||
Photo tube, 2 port beam splitter | YR0248-op20 | |||
Photography adapter, 2.0x, for Nikon or Canon DSLR camera | YR0248-op21 | |||
C-mount 0.5x | YR0248-op22 | |||
C-mount 1.0x | YR0248-op23 |
