Microscope Polarisant YR0261
Microscope Polarisant YR0261 — équipement de laboratoire Kalstein avec spécifications techniques, caractéristiques avancées et solutions professionnelles certifiées pour usage scientifique.
The Microscope Polarisant YR0261 is the perfect choice for professionals seeking precision and reliability. Designed with adaptability in mind, it features a quintuple revolving nosepiece and strain-free Infinity Plan objectives (4x, 10x, 40x, 100x) ensuring crisp, clear imaging essential for detailed analysis. With a halogen light source of 24V100W and adjustable brightness, this microscope provides consistent illumination for optimal viewing.
Market Price
Microscopes with features similar to the Polarisant YR0261 typically range in price from $4,000 to $4,900. This competitive pricing reflects the advanced capabilities and high-quality build that is designed to meet the demands of serious professionals in various scientific fields.
Frequently Asked Questions
1. What is the maximum magnification of the Microscope Polarisant YR0261?
The maximum magnification available with this model is 100x, allowing for detailed observation of specimens.
2. Does it include an adapter for photography?
Yes, it comes with a photo adapter and a C-Mount 1.0x, facilitating easy integration with imaging devices.
Advantages and Disadvantages
Advantages:
- High precision with a 360° rotating polarizing stage.
- Infinity corrected optics for superior image quality.
- Robust build with customizable illumination settings.
Disadvantages:
- Cost may be prohibitive for small laboratories or educational institutions.
- Requires some expertise for optimal operation and maintenance.
Product Use in the Field
This microscope is ideal for use in advanced laboratories, particularly in geology, mineralogy, and material sciences, where polarized light microscopy is essential. Its rotating analyzer and Bertrand lens unit allow for comprehensive and flexible sample analysis.
Recommendations
For optimal performance, it is recommended to regularly calibrate the microscope and keep it clean. Utilizing the rotating stage feature will enhance your ability to examine specimens from various angles, providing a more comprehensive analysis.
Features
- Adjustable quintuple revolving nosepiece
- Infinity Plan objectives (4x, 10x, 40x, 100x)
- 170mm adjustable center round stage
- Analysis unit with Bertrand lens and quartz wedge
- 24V100W halogen adjustable brightness emission
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- WD 5.1mm | YR0261-op1 |
| Stage | Removable stage, movement range 30*40 mm | YR0261-op1 |
| Filter | Neutral filter ND25 | YR0261-op1 |
| Neutral filter ND26 | YR0261-op1 | |
| Adapter | Photo adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

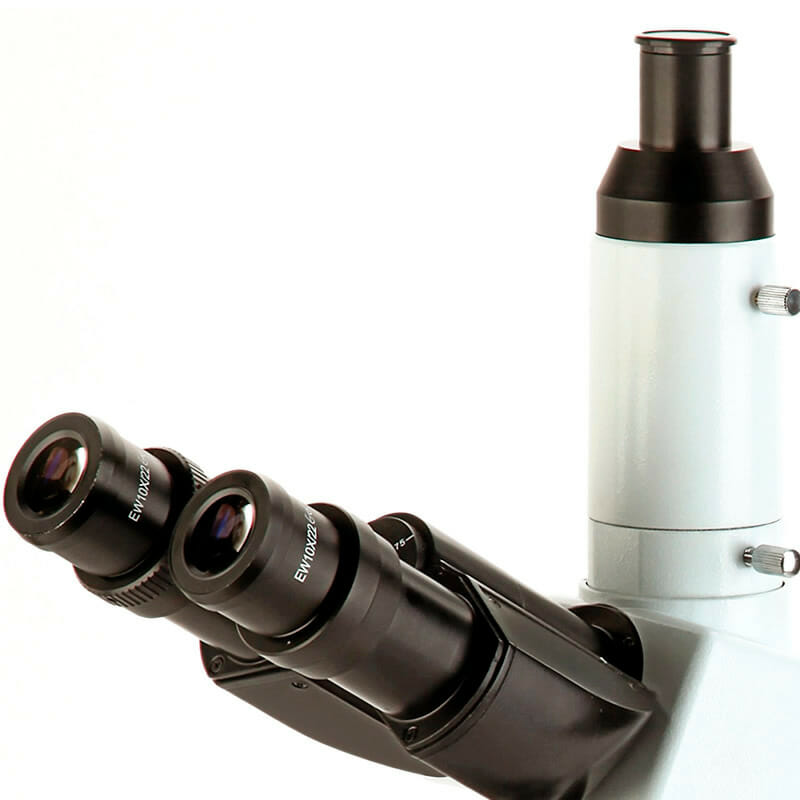

| Head | Seidentopf Trinocular Head, inclined at 30°, interpupillary 48~75mm, diopter adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Flat Eyepiece with Cross Scale | ||
| Flat Eyes with Cross | ||
| Flat Eyepiece with Grid | ||
| Objective | Stress-free Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W 17.3mm | ||
| 10x/0.25/∞/0.17AN 10mm | ||
| 40x/0.65/∞/0.17 Bandwidth 0.54 mm | ||
| 100x/1.25/∞/0.17 Bandwidth 0.13 mm | ||

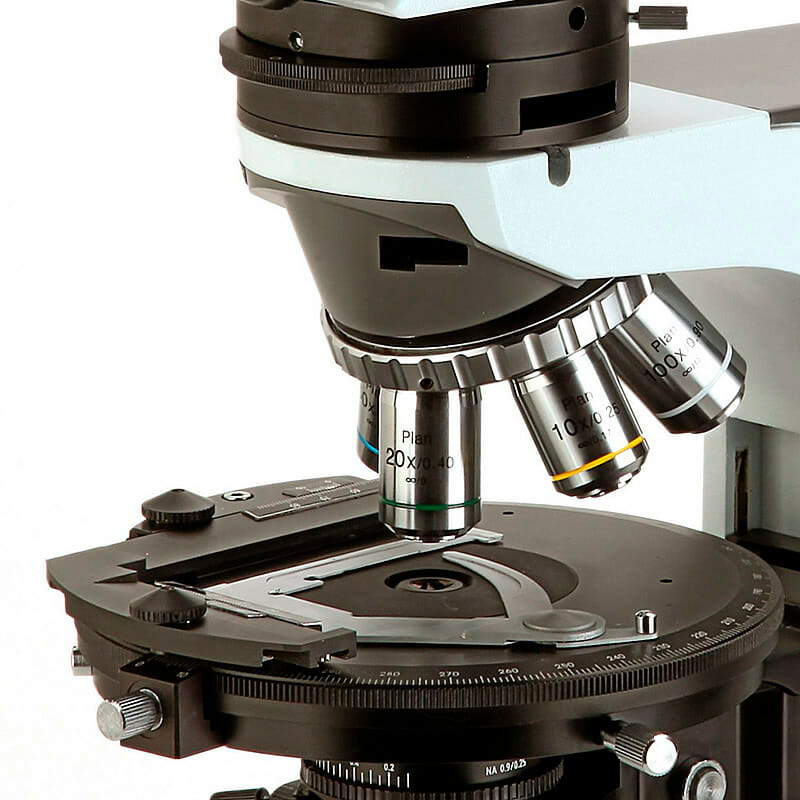

| Nosepiece | Quintuple revolving nosepiece, center adjustable | |
| Analyzer | 360° Analyst dial rotation, minimum scale reading 0.1° (vernier scale) | |
| Switch between orthoscopic and conoscopic observation | ||
| Adjustable Bertrand lens objective position | ||
| Optical Compensator: λ slide (first-class red), 1/4λ slide, quartz wedge | ||
| Working Stage | Rotating polarization stage, diameter 170 mm, center adjustable | |
| 360° Scale, Minimum division 1° | ||
| Minimum reading 6’ via vernier scale | ||
| 45° stop knob | ||
| Condenser | Swing-out condenser without stress NA0.95/0.25 | |

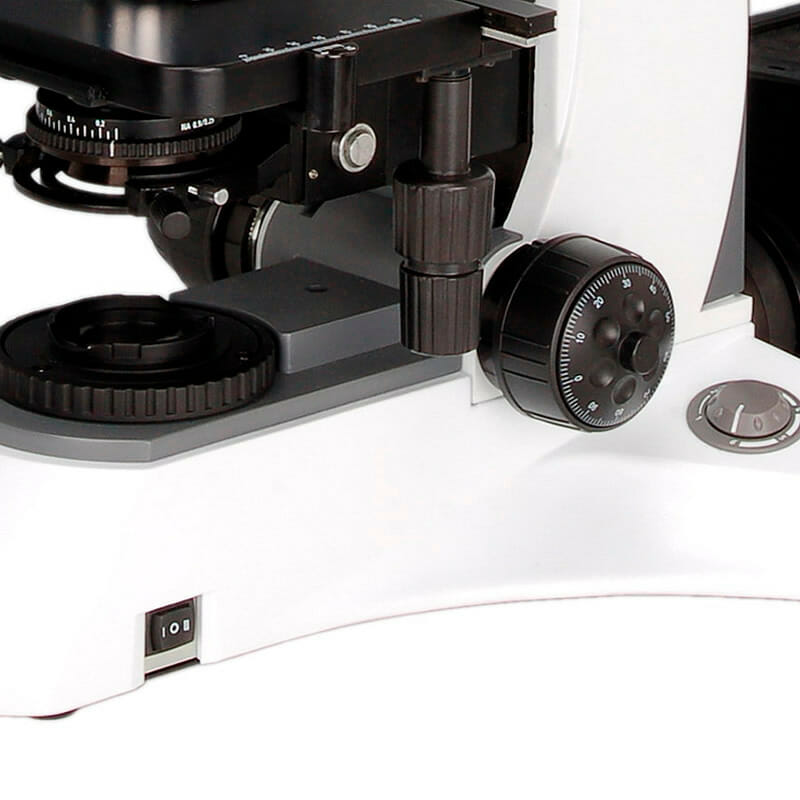

| Approach | Coarse and fine coaxial adjustment, focus range 32 mm, fine division 0.001 mm, coarse travel 37.7 mm per rotation, fine travel 0.1 mm per rotation | |
| Polarizing | 360° rotation, 0° adjustable position | |
| Filter | Blue filter diameter 45 mm | |
| Lighting | Transmission halogen light 24V100W, adjustable brightness | |
Spécifications techniques

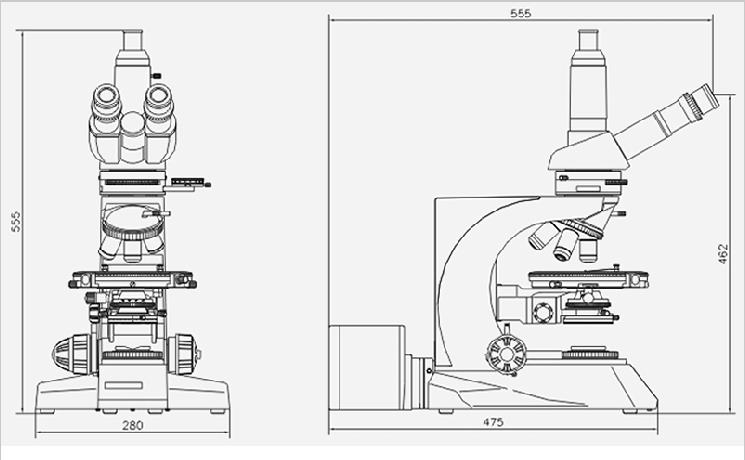

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Poids | 16.5 kg |
| Fabricant | Kalstein |
