Description

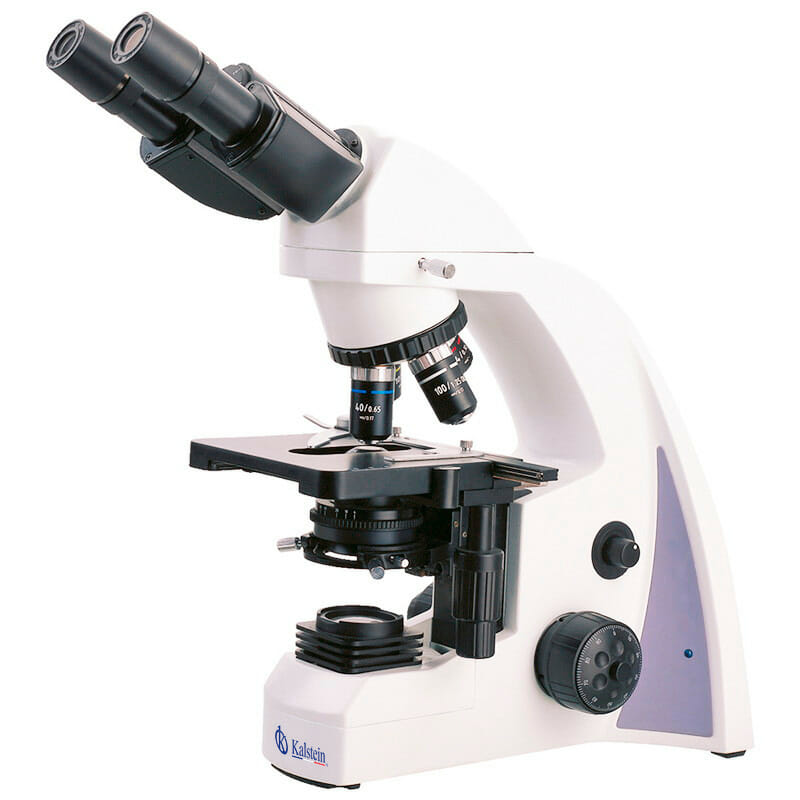

The Microscope de laboratoire YR0237 is a top-tier laboratory instrument, boasting a binocular Seidentopf head inclined at 30° with an interpupillary distance of 52-75 mm. Equipped with wide-field WF10x/18mm eyepieces and achromatic semi-plan infinity objectives, this microscope offers precise focusing with both coarse and fine adjustment knobs. It’s designed for optimal clarity and precision, making it ideal for detailed laboratory work.
Price in the Market
When considering the purchase of a laboratory microscope like the YR0237, it’s important to have a reasonable budget in mind. In the market, microscopes of this caliber typically range from $1100 to $1900 USD. The investment aligns with the advanced features and robust design inherent to this product, ensuring value for money.
Frequently Asked Questions
Do the microscopes come with a warranty?
Yes, the Microscope de laboratoire YR0237 comes with a standard manufacturer’s warranty, ensuring quality and reliability.
Can this microscope be used for educational purposes?
Absolutely, while it’s designed for professional laboratory settings, it is also an excellent tool for advanced educational environments due to its precision and ease of use.
Advantages and Disadvantages
This microscope stands out for its high-precision optics and user-friendly design, making it a trusted choice for professionals. Its adjustable LED illumination is a significant advantage, providing superb visibility. However, the investment might be on the higher side for smaller labs or educational institutions with limited budgets.
Product Usage in The Field
The YR0237 is used extensively in medical labs, research facilities, and universities. Its precision allows for detailed observation of biological specimens, making it indispensable for conducting various types of analyses and research projects.
Recommendations
For optimal use of the Microscope de laboratoire YR0237, regularly calibrate the focusing knobs and clean the lenses with appropriate solutions to maintain clarity. Consider using compatible optional accessories for enhanced functionality in specialized research tasks.
Features

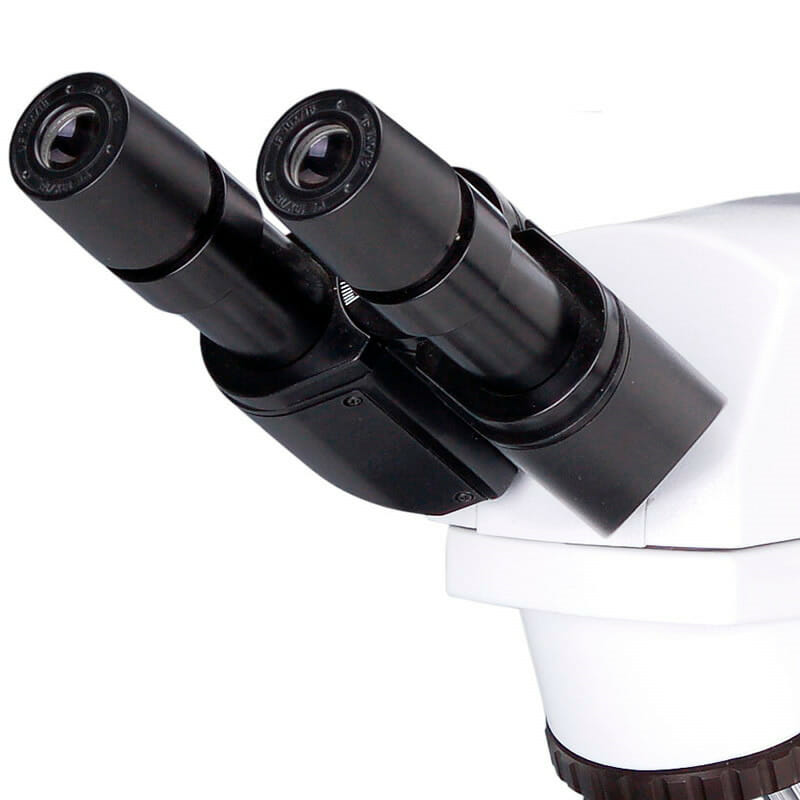

- Binocular head, wide field eyepieces WF 10x/18 mm
- Semi-plan infinity achromatic objectives
- Adjustable center sliding condenser N.A1.25

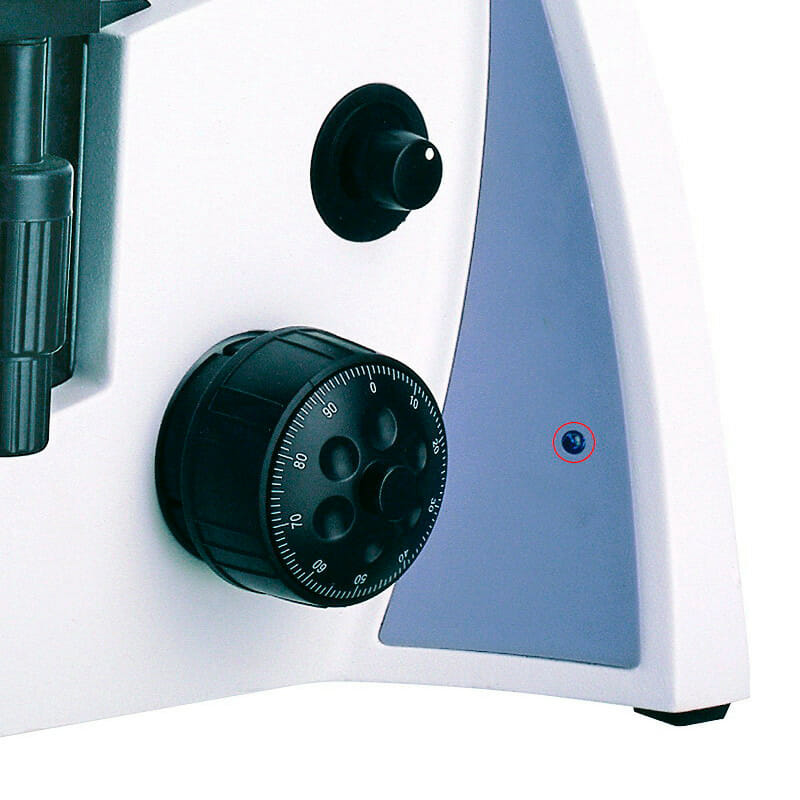

- Convenient coarse and fine focusing knob
- Brightness adjustment knob
- Power indicator
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Binocular Seidentopf head, inclined at 30°, interpupillary distance 52-75 mm, eyepiece tubes rotated 180° upwards and downwards | o | |
| Trinocular Seidentopf head, inclined at 30°, interpupillary distance 52-75 mm, eyepiece tubes rotated 180° upwards and downwards | o | ||
| Eyepiece | Wide field eyepiece WF10x/18mm | ||

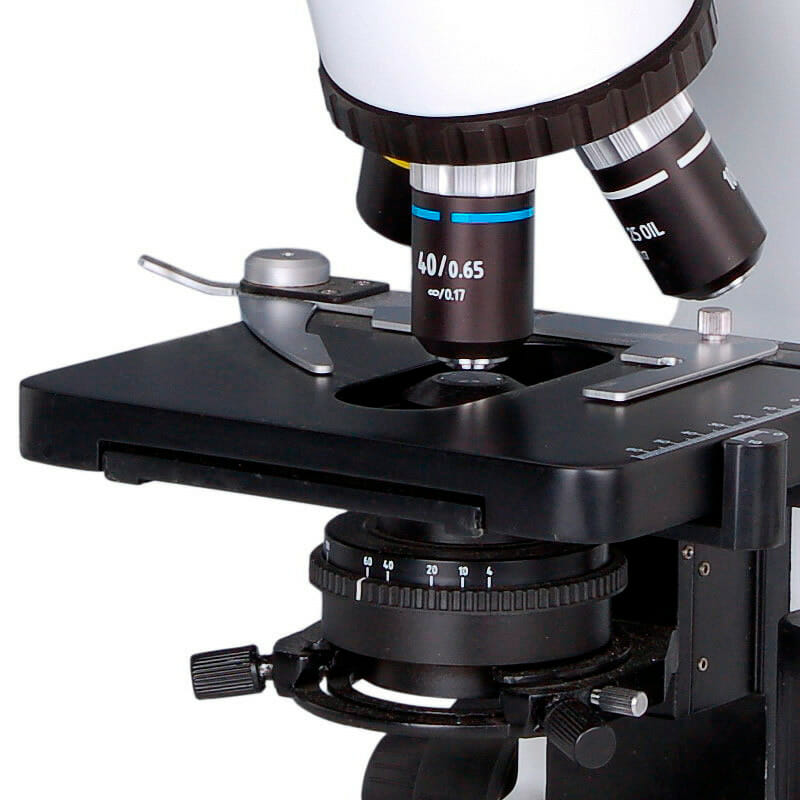

| Objective | Semi-plan infinity achromatic objective 4x, 10x, 40x, 100x | ||
| Nosepiece | Backward quadruple nosepiece | ||
| Stage | Double layer mechanical stage, size 140×140 mm, movement range 75×50 mm | ||
| Condenser | Adjustable center sliding condenser NA1.25 | ||
| Focusing | Coaxial coarse and fine adjustment, 20 mm movement range | ||
| Illumination | S-LED illumination, adjustable brightness | ||
| Optional Accessories for Laboratory Biological Microscope | |||
| Eyepiece | WF10x/20mm, adjustable diopter | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W halogen lamp, adjustable brightness | YR0237-1-op6 | |
| Darkfield | Dry darkfield condenser, NA0.7~0.9 | YR0237-1-op7 | |
| Oil darkfield condenser, NA1.25~1.36 | YR0237-1-op8 | ||
| Darkfield Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| Dark field immersion observation | |||
| Darkfield Objective, Infinity Plan 100X, with Iris diaphragm | YR0237-1-op10 | ||
| Dark field immersion observation | |||
| Phase Contrast | Infinity Plan turret phase contrast set | YR0237-1-op11 | |
| –Infinity Plan turret phase contrast condenser | |||
| –Infinity Plan Phase Contrast Objective 4x, 10x, 40x, 100x | |||
| –Centering telescope 10x | |||
| Infinity Plan turret achromatic phase contrast set | YR0237-1-op12 | ||
| –Infinity Plan turret achromatic phase contrast condenser | |||
| –Infinity Achromatic Phase Contrast Objective 4x, 10x, 40x, 100x | |||
| –Centering telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI light 3W LED 465~475nm, B excitation filter BP460~490 | YR0237-1-op13 | |
| EPI light 3W LED 525~530nm, G excitation filter BP510~550 | YR0237-1-op14 | ||
