Microscope binoculaire de laboratoire YR0243 // YR0244
Microscope binoculaire de laboratoire YR0243 // YR0244 — équipement de laboratoire Kalstein avec spécifications techniques, caractéristiques avancées et solutions professionnelles certifiées pour usage scientifique.

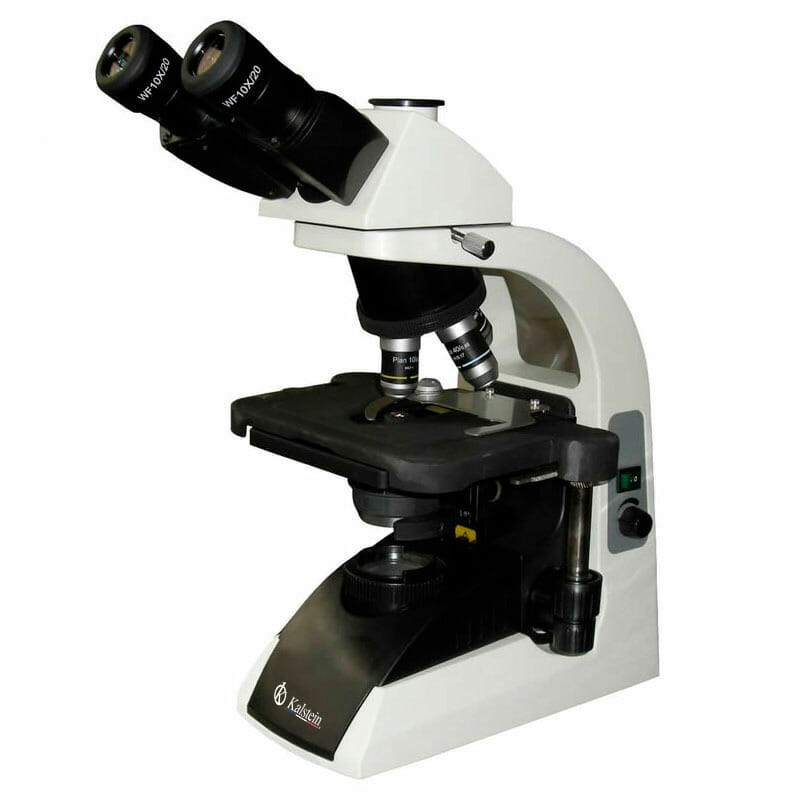

The Microscope Binoculaire de Laboratoire YR0243 // YR0244 is an advanced optical instrument designed for precision and versatility in a laboratory setting. Featuring an infinity achromatic objective system (4x, 10x, 40x, 100x), this microscope delivers crisp and clear images with high color fidelity. It includes a rotatable Seidentopf head, providing user comfort with a 30° inclined binocular (or trinocular) view, plus a wide-field WF10x/20 mm eyepiece. With a built-in Abbe condenser (NA1.25) and adjustable coarse and fine focusing system, it offers exceptional light management through a 12V/20W halogen lamp with variable intensity. The robust construction and precise mechanics make it a standard choice for labs seeking reliability and performance.
Price in the Market
The market price for a laboratory microscope with such specifications typically ranges between $1100 USD and $1900 USD. This pricing reflects the advanced build and functionality, ensuring top-quality performance for laboratory professionals. For precise pricing and to explore your options, we invite you to request a quote through our Kalstein Plus platform.
Frequently Asked Questions
- What is the maximum magnification available? The microscope offers a magnification range from 40x to 1000x.
- Is the light source LED or halogen? This model includes a halogen lamp system with adjustable brightness.
- Can the microscope be used for fluorescence microscopy? Yes, with optional accessories such as the EPI-Fluorescent kit, the microscope can be adapted for fluorescence observation.
Advantages and Disadvantages
This microscope's advantages include high optical precision, durability, and adaptability with various optional accessories for enhanced functionality. Potential disadvantages could be the reliance on a halogen light source, which may require more frequent maintenance than LED options, and a learning curve for those unfamiliar with advanced optical systems.
Product Usage in the Field
Ideal for applications in biomedical research, clinical laboratories, and higher education, the YR0243 // YR0244 microscopes facilitate detailed specimen analysis. They are extensively used in both teaching and advanced research labs for observing stained samples, bacteria, and cellular structures.
Recommendations
To maintain optimal performance, regularly clean the lenses with proper optical cleaning supplies and ensure the halogen lamp is functioning at the right intensity for your needs. Additionally, leverage the adjustable coaxial focus system for sharp and precise imaging to enhance your workflow in various laboratory applications.
Features
- Infinity achromatic objective system (4x, 10x, 40x, 100x)
- Seidentopf head, 360° rotatable with a 30° inclination
- Abbe condenser NA1.25 with centering ability
- Bright halogen illuminator with variable intensity control
- Coarse and fine coaxial focus for precision
Technical Specifications
| Model | YR0243 | YR0244 | |

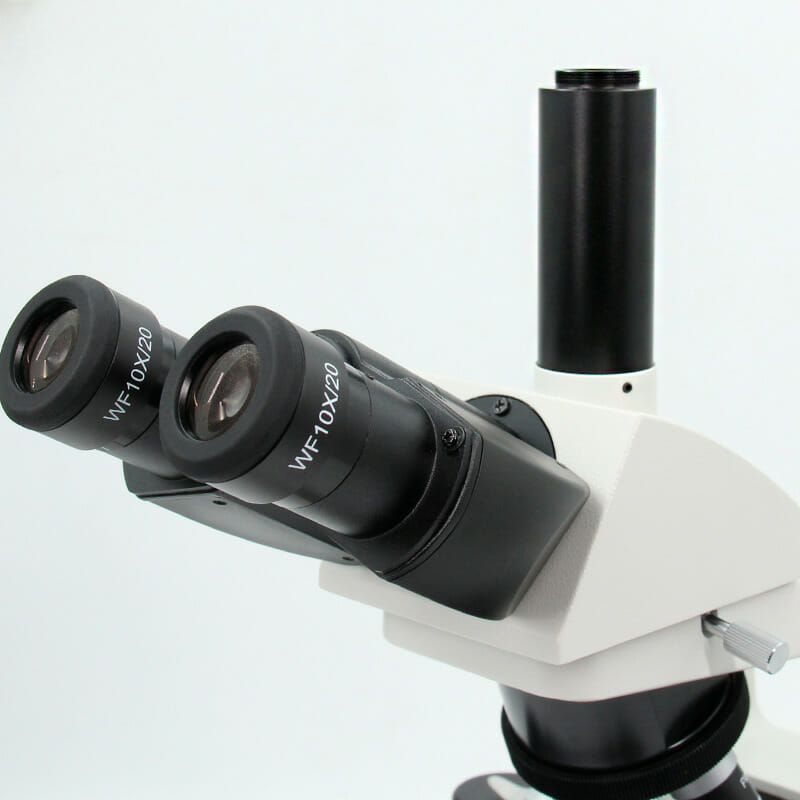

| Head | Seidentopf Binocular Head, 30° inclined, 360° rotatable, interpupillary distance 48-75 mm | ● | |
| Seidentopf Trinocular Head, 30° inclined, 360° rotatable, interpupillary distance 48-75 mm | ● | ||
| Eyepiece | WF10x/20 mm wide field, 30 mm diameter eyepiece tube, 2 pieces. | ● | ● |
| Nosepiece | Backward quadruple nosepiece | ● | ● |
| Optical System | Infinity Optical System | ● | ● |

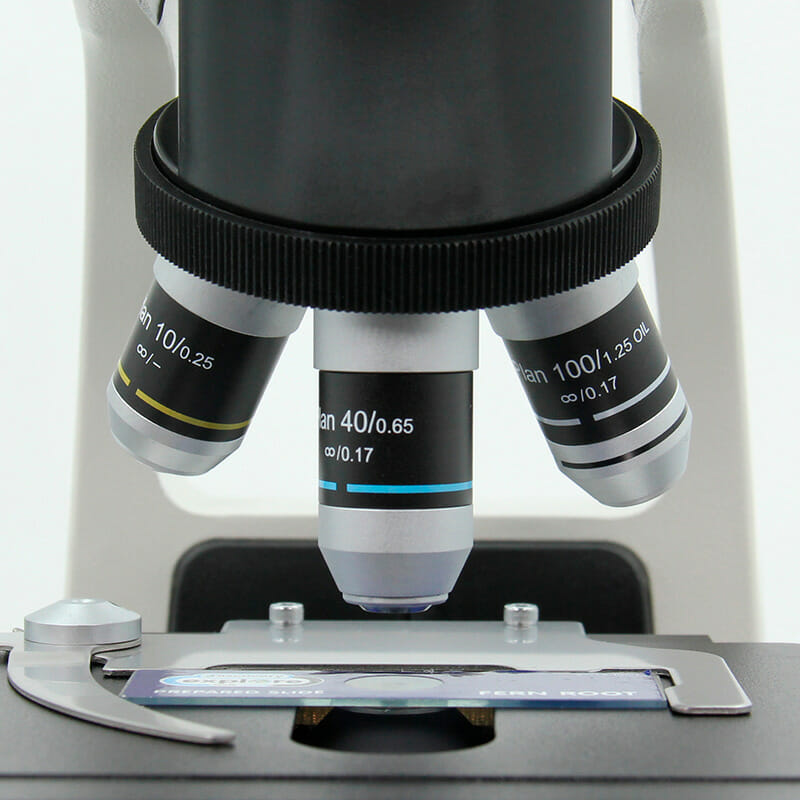

| Objective | Infinite Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,oil) | ● | ● |
| Magnification | 40x-1000x | ● | ● |

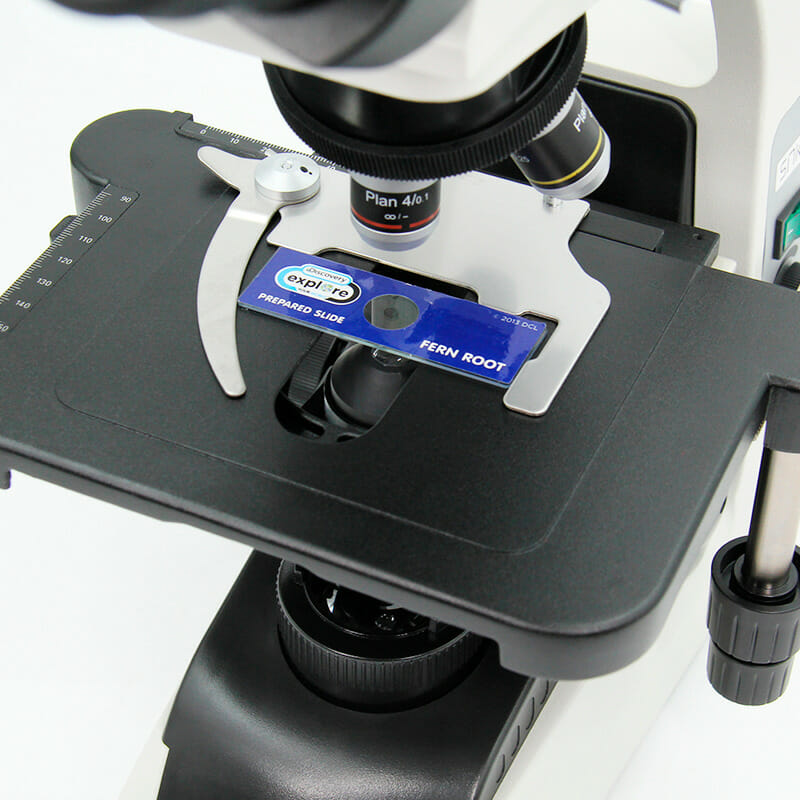

| Stage | Double layer mechanical stage, 230 × 150 mm, movement range 54 × 78 mm, double slide, low-position coaxial X / Y control knob, with anti-scratch travel guide | ● | ● |
| Focus | Coarse and fine coaxial focus system in low position. | ● | ● |
| Fine focus scale 0.002 mm, travel range 25 mm, with safety stop | ● | ● | |

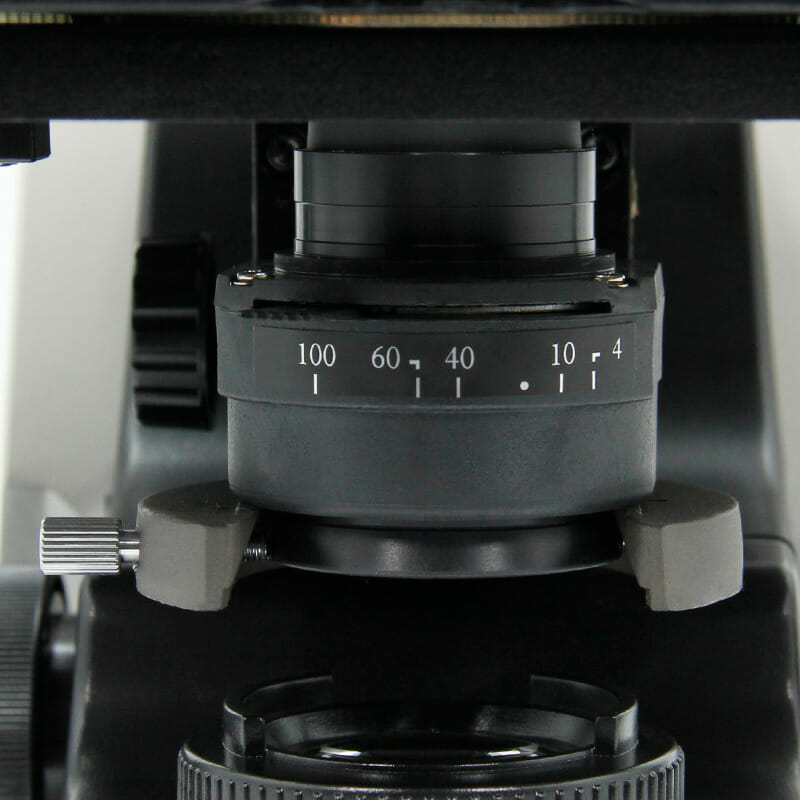

| Condenser | NA1.25 Abbe Condenser, Iris Diaphragm, with filter holder, height range 25 mm, center adjustable, with filter holder | ● | ● |
| Filter | Green | ● | ● |

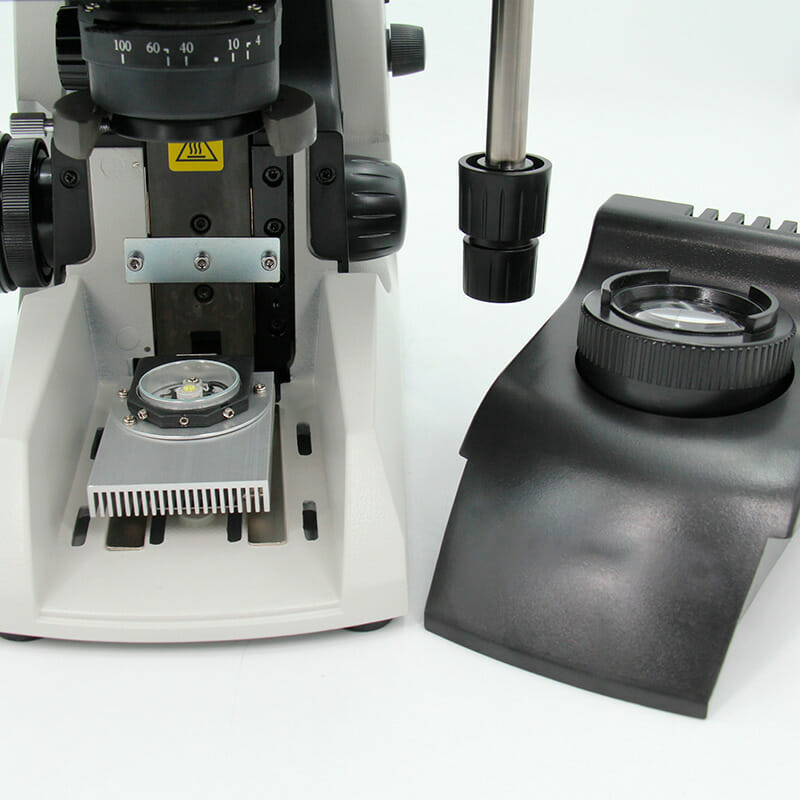

| Light Source | Halogen Lamp 12V/20W, Brightness Adjustable | ● | ● |
| Note: "●" In the table, there are standard fittings | |||
| Items | A12.1010 Biological Laboratory Microscope Optional Accessories | ||
| Eyepiece | WF15x/16 mm wide field, 30 mm diameter eyepiece tube | YR0244-op1 | |
| WF20x/12 mm wide field, 30 mm diameter eyepiece tube | YR0244-op2 | ||
| Objective | Plan Infinite Achromatic 20x | YR0244-op3 | |
| Plan Infinite Achromatic 60x | YR0244-op4 | ||
| Nosepiece | Quintuple rotating objective nosepiece | YR0244-op5 | |
| Illumination | Kohler illumination | YR0244-op6 | |
| Adapter | Photo adapter | YR0244-op7 | |
| C-mount 0.4x | YR0244-op8 | ||
| C-mount 0.5x | YR0244-op9 | ||
| Dark Field | Dark field condenser, dry | YR0244-op10 | |
| Darkfield condensate, immersion | YR0244-op11 | ||
| Polarizing | Simple polarization kit | YR0244-op12 | |
| Phase Contrast | Phase Contrast Set | YR0244-op13 | |
| Fluorescent | EPI-Fluorescent Kit | YR0244-op14 | |
Spécifications techniques
| Fabricant | Kalstein |
|---|
Modèles disponibles
Galerie d'images
Vidéo Microscope binoculaire de laboratoire YR0243 // YR0244
Questions fréquentes
Comment connaître les prix de Microscope binoculaire de laboratoire YR0243 // YR0244 ?
Pour connaître le prix de Microscope binoculaire de laboratoire YR0243 // YR0244, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Microscope binoculaire de laboratoire YR0243 // YR0244 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Microscope binoculaire de laboratoire YR0243 // YR0244 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Microscope binoculaire de laboratoire YR0243 // YR0244 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Microscope binoculaire de laboratoire YR0243 // YR0244 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
