Description

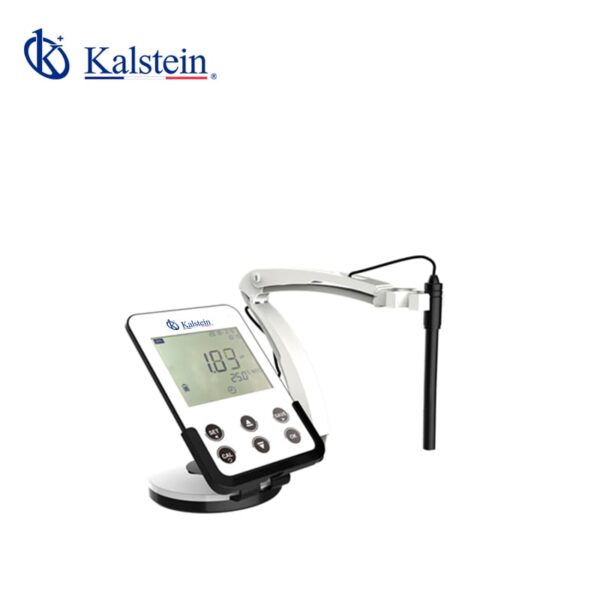

The Dissolved Oxygen Meter / Benchtop Conductivity Meter YR01837 is a state-of-the-art laboratory instrument designed to provide precise and reliable measurements of conductivity, TDS, salinity, and resistivity. Equipped with a 6.5-inch LED screen, it has an intuitive user interface that enhances usability. Its advanced features include automatic calibration, data storage, automatic temperature compensation (ATC), and Bluetooth connectivity for wireless printing. With the ability to store up to 1000 data sets and compatibility with Excel, it is an ideal choice for demanding work environments.
Market Price
The YR01837 is typically available in a price range between 500 USD and 800 USD. This pricing makes it a competitive choice for those seeking affordable options equipped with advanced features. For an accurate quote, we invite you to request a quotation via our Kalstein Plus platform.
Frequently Asked Questions
Q: Is the YR01837 compatible with other data management software?
A: Yes, data can be transferred to a USB drive and opened with Excel.
Q: What is the lifespan of the touchscreen?
A: The Omron light touch is designed to withstand more than 100,000 uses.
Q: Does it have wireless connectivity options?
A: Yes, it supports wireless printing via Bluetooth, and real-time data transfer to a mobile phone is optional.
Advantages and Disadvantages
The YR01837 offers numerous advantages, including precision, ease of use thanks to its LED screen, and advanced features like Bluetooth. However, some users may find that its many features take a little time to get used to.
Field Use
This conductivity meter is ideal for use in research laboratories, academic institutions, and industries requiring precise water quality measurements. Its data storage capacity and connectivity easily integrate into modern work environments.
Recommendations
To get the most out of your YR01837, ensure you regularly follow calibration and maintenance procedures. Additionally, handling electrodes with care and cleaning them after each use will extend their lifespan.
Features
- 6.5-inch LED screen with intuitive user interface.
- Smart functionalities such as automatic calibration and automatic temperature compensation (ATC).
- Data storage, clock display, USB output, and wireless printing via Bluetooth.
- Can store up to 1000 data sets, exportable to Excel.
- Measurement ranges for conductivity: 0.5μS/cm to 200mS/cm.
- Compatible with European, American, and Chinese conductivity standards.
Technical Specifications
Model | YR01837 | |
Cond.
|
Measuring Range
|
Conductivity: |
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
(200~2000)μS/cm, (2.00~20.00)mS/cm | ||
(20.0~200.0)mS/cm, | ||
(200~2000)mS/cm (K=10) | ||
TDS: (0 ~ 100)g/L | ||
Salinity: (0 ~ 100)ppt | ||
Resistivity: (0 ~ 100)MΩ-cm | ||
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
Temp. Compensation | (0 ~ 50)ºC, auto | |
Electrode Constant | 0.1 / 1 / 10 cm-1 | |
Reference Temp. | 25ºC, 20ºC, 18ºC | |
Temp.
|
Measuring Range | (0 ~ 100)ºC |
Resolution | 0.1ºC | |
Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
Other
|
Display | 6.5-inch LED screen |
Data Storage | 1000 sets | |
Power | 12V/1A | |
Output | USB, RS232, Bluetooth | |
Ambient Temp. | 5 ~ 35 ºC | |
Ambient Humidity | ≤85% | |
IP Grade | IP54 | |
Dimensions/N.W. | 240×170×70mm/600g | |
Shipping Size/G.W. | 470x430x85mm/2.6kg |
