Description

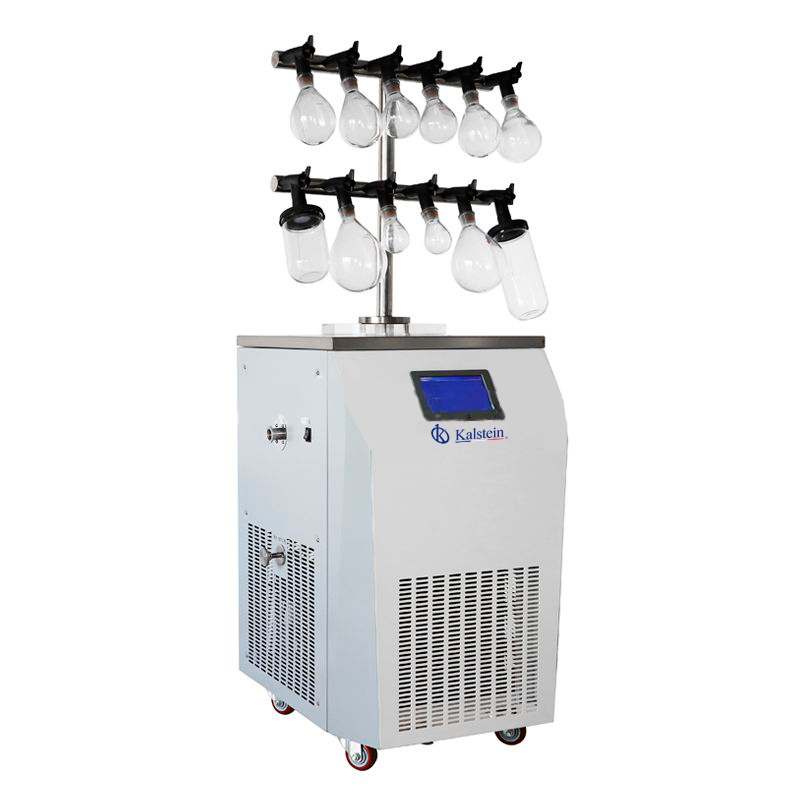

The Lyophilisateur de laboratoire vertical de type T YR05193-1 represents a significant technological advancement in the field of vacuum freeze-drying. Designed for use in various sectors such as medicine, pharmaceuticals, biology, the chemical industry, and food processing, it offers an efficient solution for long-term preservation of products. With its sublimation drying technology, samples can be restored to their original state after rehydration, ensuring their chemical and biological characteristics are preserved. Equipped with an English interface and an LCD display detailing drying curves, this model is both functional and easy to use, even in environments with ambient temperatures of ≤25℃.
Market Price
The Lyophilisateur YR05193-1 is competitively priced, typically ranging from 5800 USD to 6600 USD. This pricing position reflects the superior quality and advanced features of the device while remaining accessible to laboratories and industries looking to optimize their lyophilization process.
Frequently Asked Questions
What is the condenser capacity of this device? The condenser has a capacity of 3 kg over a 24-hour period.
Can I customize the tray spacing? Yes, the tray spacing is customizable to meet your specific needs.
Advantages and Disadvantages
Among the advantages of the YR05193-1 are its CFC-free refrigeration, a low noise level thanks to an efficient compressor, and a long lifespan, as well as a drying chamber visible in organic glass for added safety. However, a potential limitation could be the need for a temperature-controlled environment for optimal operation.
Product Use in the Field
In practical terms, the lyophilizer is used to process various biological, pharmaceutical, and food samples. Its ability to sublimate moisture from samples under vacuum ensures that lyophilized products maintain their structural and chemical integrity, essential for advanced medical and research applications.
Recommendations
To maximize the efficiency of your lyophilizer, make sure to follow the technical specifications, particularly regarding temperature and airflow conditions. Regular maintenance, such as cleaning the condensers and checking electrical connections, will help extend the device’s lifespan. For a quote or automated pricing, visit Kalstein Plus.
Features
- CFC-free refrigeration
- Drying curves on LCD display, English interface
- Condenser opening, condenser with pre-freezing function
- Low noise compressor, high efficiency, long lifespan
- Condenser and control panel entirely stainless steel
- Organic glass drying chamber is safe and visible
- Stainless steel shelf and tray, customizable tray spacing
- Compact size, easy and practical operation
- Nitrogen valve is optional
- Eutectic point test device is optional
- Communication interface is optional
- Cascade refrigeration is optional, applied for -80 ℃ device
Technical Specifications
Model | YR05193-1 |
Condenser Capacity | 3kg /24h |
Condenser Temperature | -55℃ (-80℃ optional) |
Vacuum Degree | < 10 Pa |
Rubber Sealed Valve | 24 pieces, for 24 ampoules |
special custom requirement | |
Cooling | Air, airflow, ambient temperature ≤25℃ |
Vacuum Pump Flow | 2 L/S, 7.2 m3/h |
Voltage | 220V, 50Hz |
Power | 750W |
Main Unit Dimensions | 560×460×(720+440) mm |
Main Unit Weight | 62 kilograms |
