Lampe de fonctionnement YR02115 // YR02123
Lampe de fonctionnement YR02115 // YR02123 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Lampe de fonctionnement YR02115 / YR02123 is designed for those who seek excellence in surgical lighting systems. Equipped with LED bulbs from Osram, this surgical lamp guarantees a long bulb life of up to 50,000 hours. Its standout feature is the sterile handle that allows precise light focalization to optimize the surgical field. With a single button controlling maximum illumination, this lamp also offers an adjustable color temperature option, integrated HD camera, and control screen, which are essential for modern medical procedures.
Market Price Overview
The pricing for surgical lamps such as the YR02115 / YR02123 varies based on features and specifications. Generally, products in this range are priced between 9,700 USD and 10,500 USD, providing competitive advantages for institutions looking for quality equipment without compromising their budgets. To secure a competitive quote, request an automatic quotation through our Kalstein Plus platform today!
Frequently Asked Questions
What is the life expectancy of the LED bulbs? The LED bulbs have a life expectancy of approximately 50,000 hours, ensuring long-term reliability.
Can the color temperature be adjusted? Yes, there is an option to adjust the color temperature according to the specific needs of the procedure.
Does it come with an integrated camera? Yes, the lamp features an integrated HD camera for enhanced precision during operations.
Advantages and Disadvantages
Advantages: The lamp offers high light intensity, adjustable color temperature, and comes with an integrated HD camera. It is durable, with a long bulb life and efficient sterilization processes.
Disadvantages: The initial investment may seem high for some smaller practices, and it requires regular maintenance to ensure optimal performance.
Product Use in the Field
This surgical lamp is primarily used in hospital operating rooms and outpatient surgical centers. Its high-intensity illumination and adjustable settings allow surgeons and medical staff to focus on delicate procedures with precision. The integrated camera also assists in recording procedures for educational and legal purposes.
Recommendations
To maximize the longevity and performance of your surgical lamp, ensure regular maintenance checks are conducted. Use the adjustment features to cater to specific surgeries and educate the staff on properly handling the sterile controls. Always follow the manufacturer's guidelines for cleaning and maintenance.
Features
- LED bulbs by Osram.
- Bulb life: 50,000 hours.
- Light focalization controlled by sterile handle.
- Single button for maximum illumination.
- Endo mode available.
- Optional adjustable color temperature.

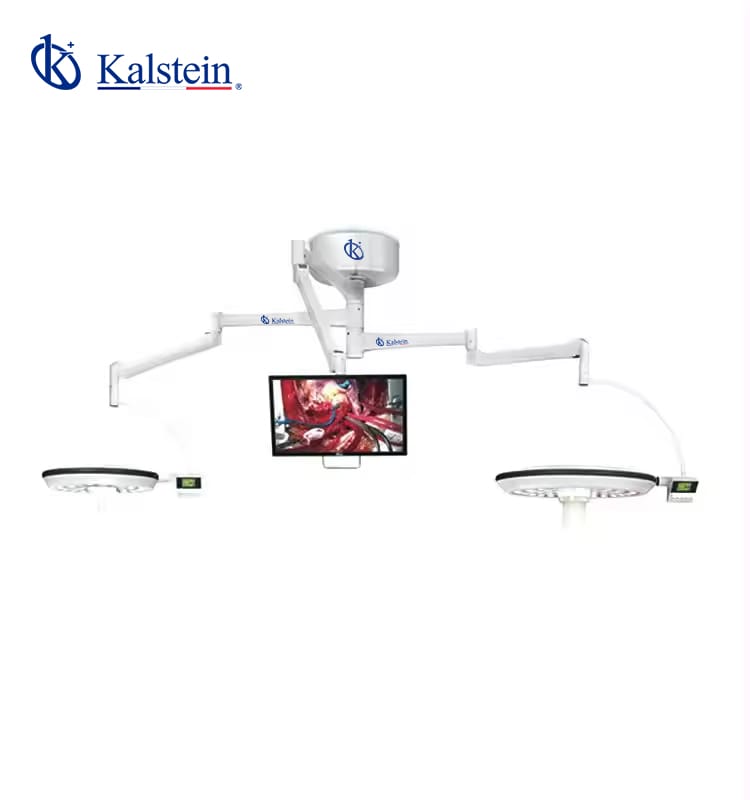

- Built-in HD camera with display monitor.
Technical Specifications
| Model | YR02115 | YR02116 | YR02117 | YR02118 | YR02119 | YR02120 | YR02121 | YR02122 | YR02123 |
| Intensity at 1m (Lux) | 160000/160000 | ≥160,000/≥160,000 | 160000/140000 | ||||||
| Color Temperature (K) | 4500±500 | (3500-4500)±500 | 3500-5000 | ||||||
| Color Rendering Index (Ra) | ≥97 | 100≥RA≥85 | Ra>95 | ||||||
| Field Diameter (mm) | 180-300 | 100~280 | 120-300 | ||||||
| Illumination Depth (L1+L2)(mm) | >1000 | 1500 | 1200 | ||||||
| Intensity Control | 10%-100% | ||||||||
| Type of Intensity Control | Control panel | ||||||||
| Type of Field Focusing Control | Sterilizable handle | ||||||||
| Number of LEDs | 176 | 90pcs | 80pcs+80pcs | 80pcs+48pcs | |||||
| Lamp Lifetime (h) | 50000 | 50,000 | 50,000 | ||||||
| Bulb Rated Power | 3.2V/1W | ||||||||
| Voltage Supply | AC110-240V 50/60Hz | ||||||||
| Minimum Installation Height (mm) | 2600 | 2700 | |||||||
Spécifications techniques
| Fabricant | Kalstein |
|---|
Modèles disponibles
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)
- Lampe de fonctionnement YR02115 // YR02123 (SKU: YR02115)

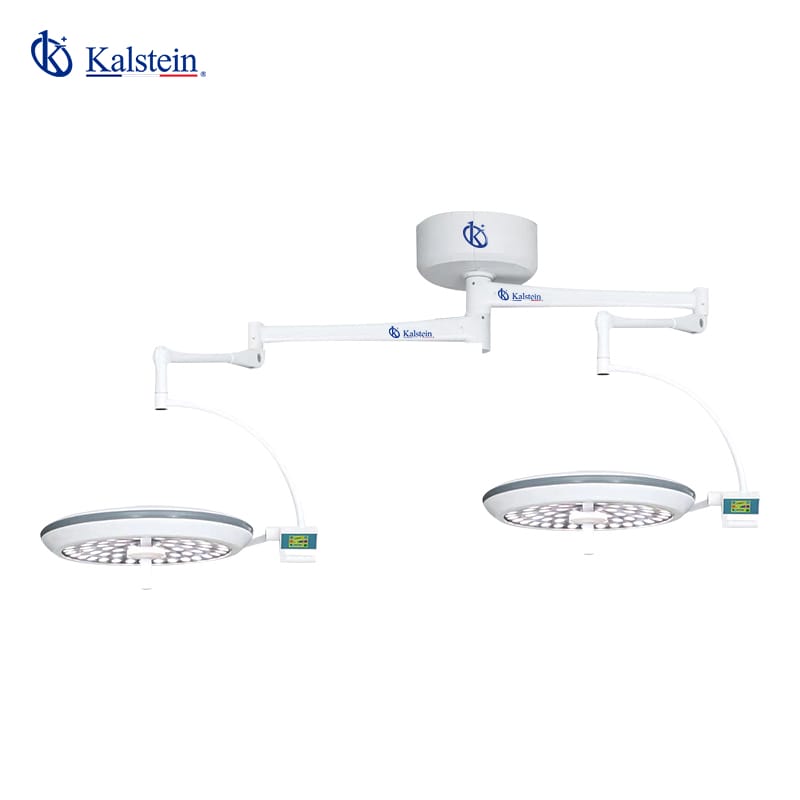

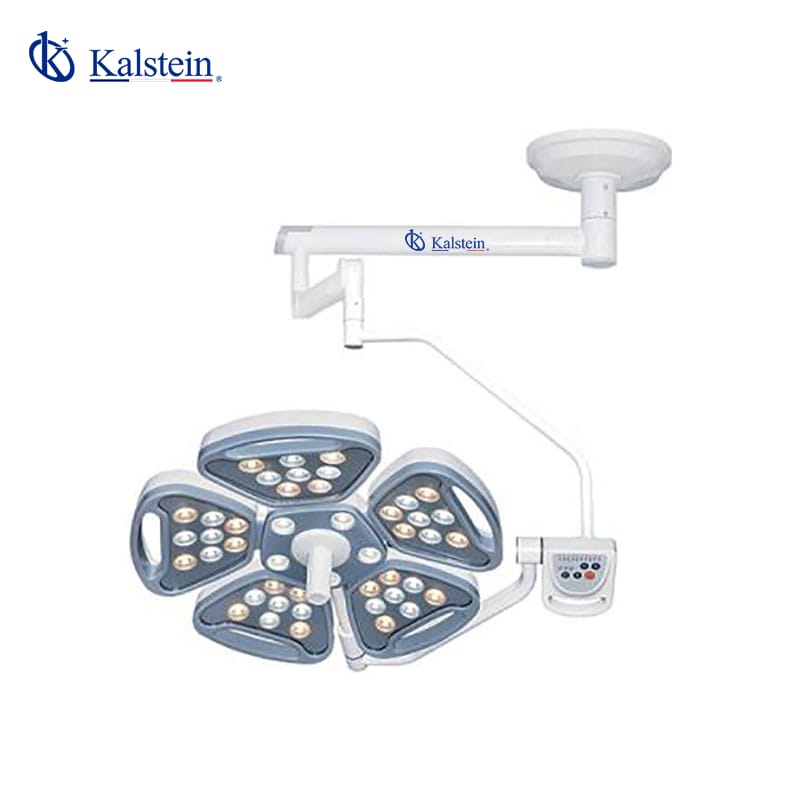

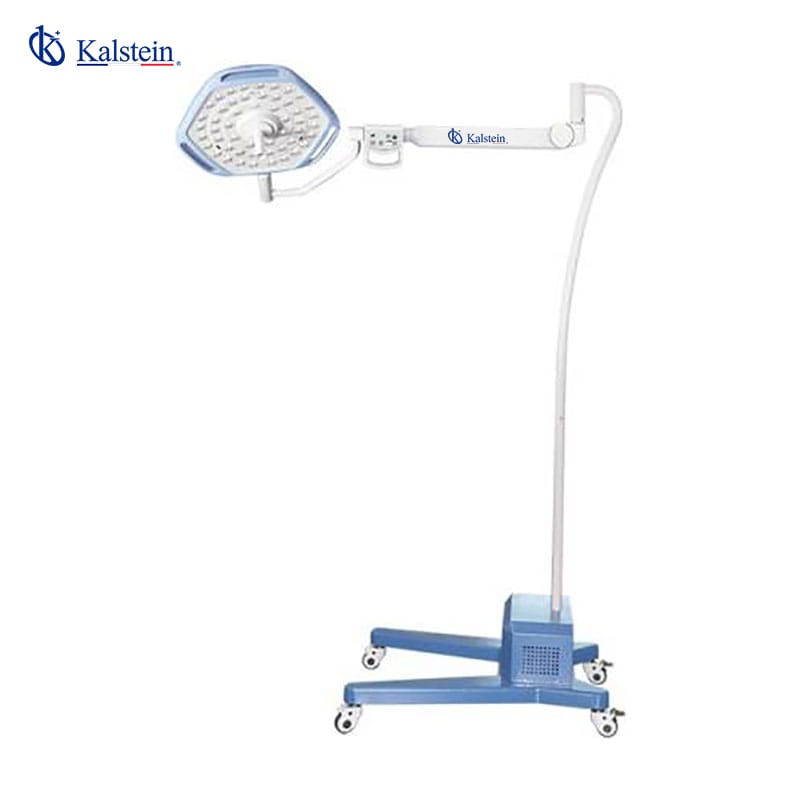

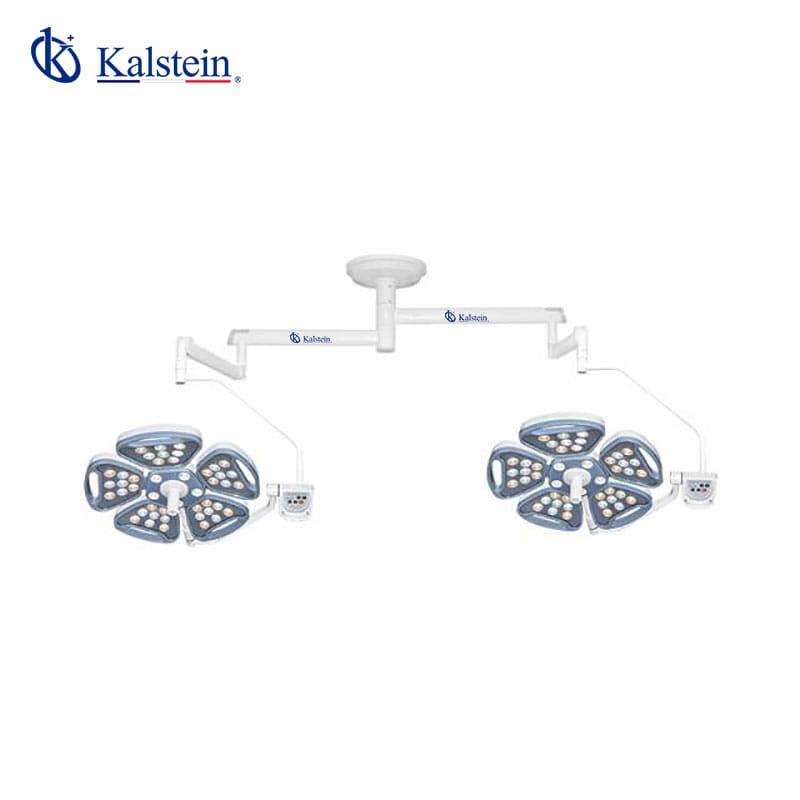

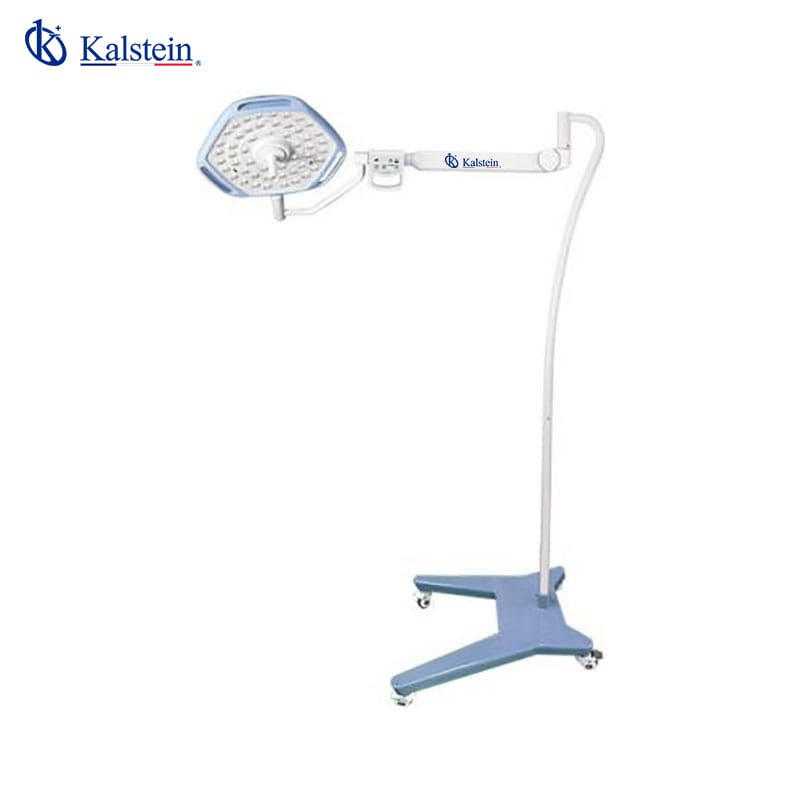

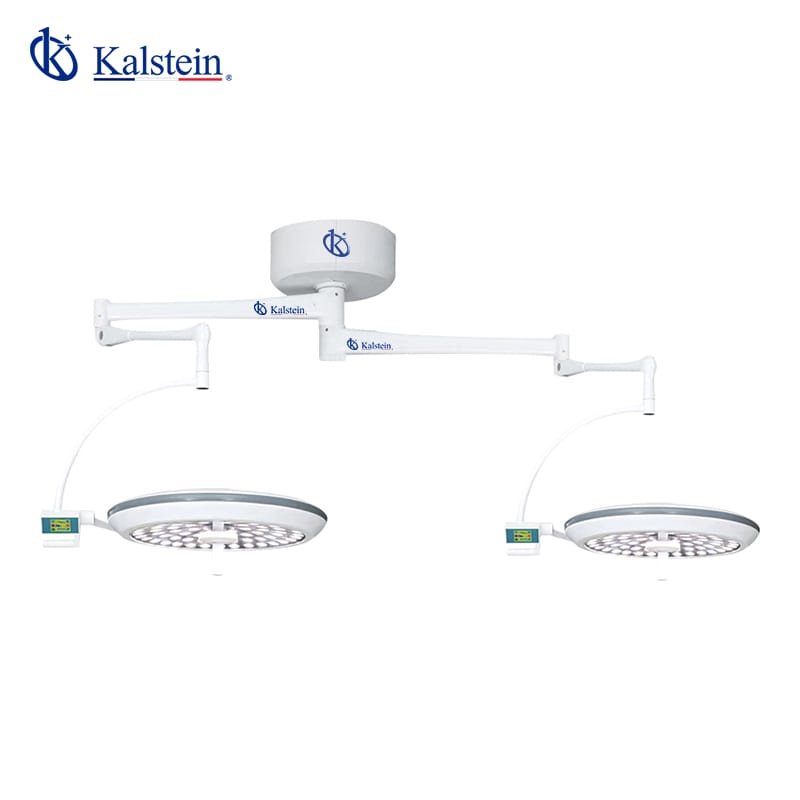

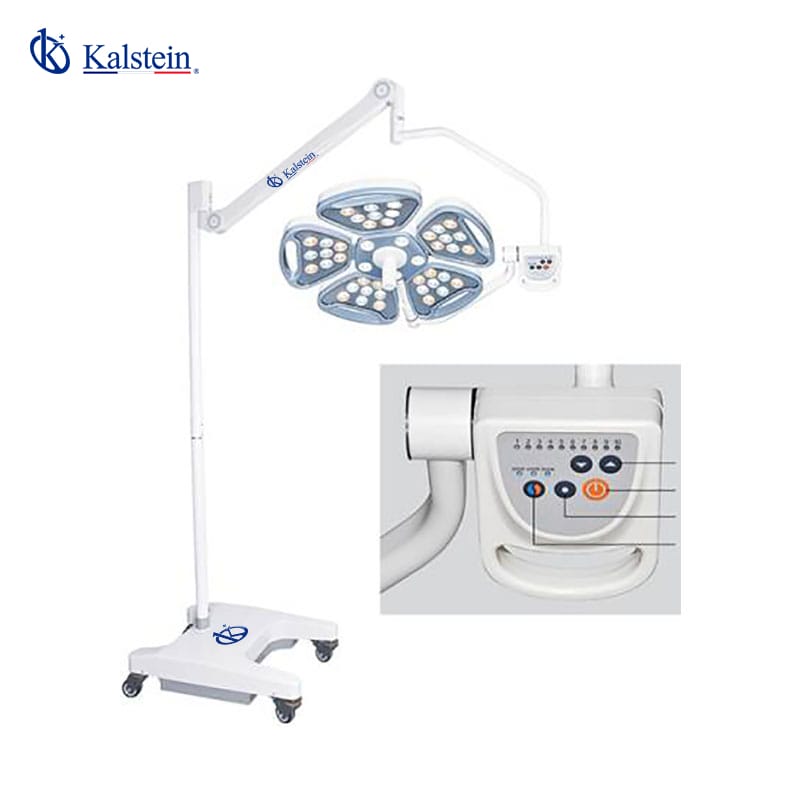

Galerie d'images
Questions fréquentes
Comment connaître les prix de Lampe de fonctionnement YR02115 // YR02123 ?
Pour connaître le prix de Lampe de fonctionnement YR02115 // YR02123, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Lampe de fonctionnement YR02115 // YR02123 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Lampe de fonctionnement YR02115 // YR02123 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Lampe de fonctionnement YR02115 // YR02123 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Lampe de fonctionnement YR02115 // YR02123 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
