Description

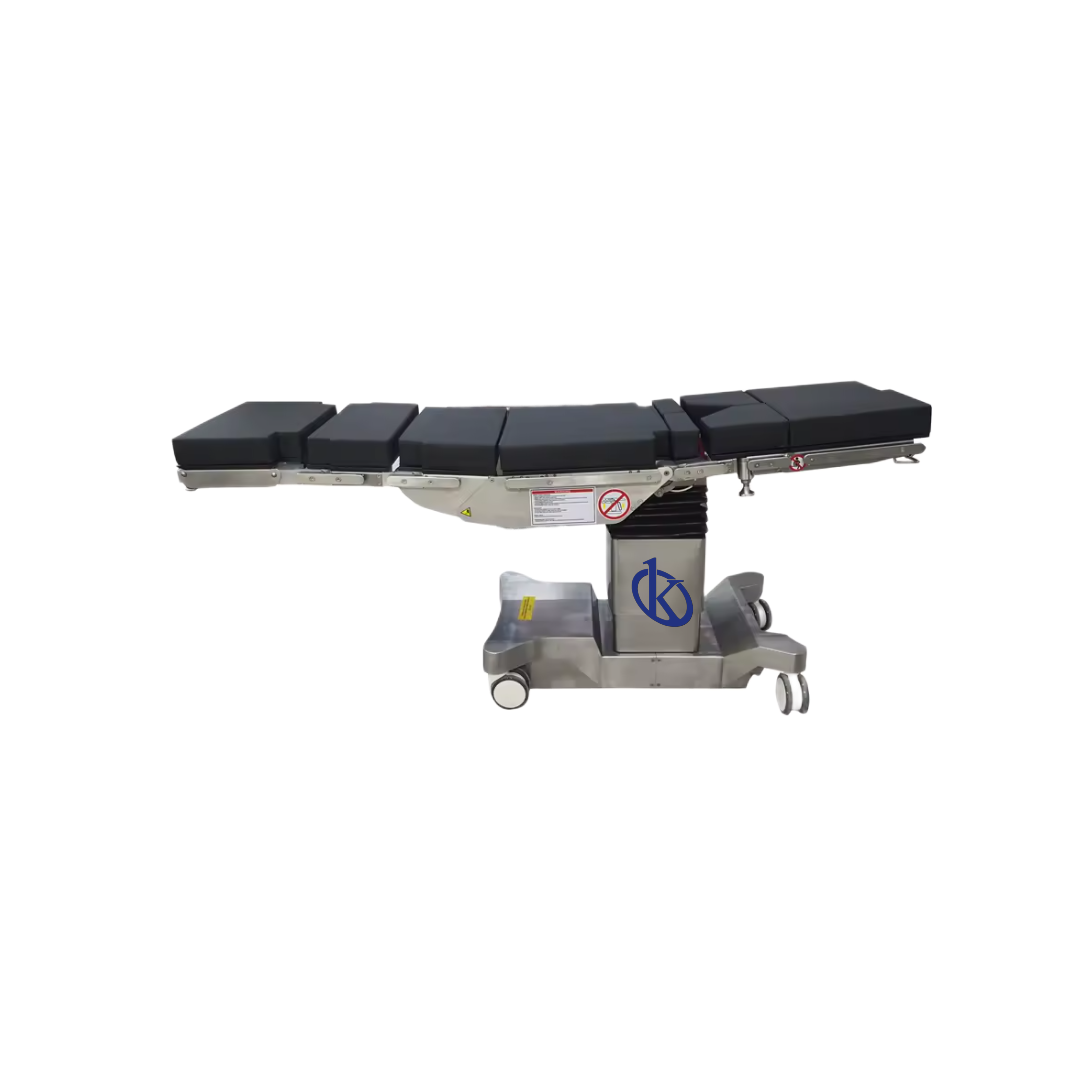

The YR06693 Operating Table is a high-end surgical solution designed to provide maximum versatility in modern operating theaters. This electro-hydraulic equipment stands out for its exceptional load capacity of up to 300 kg, ensuring superior stability even during the most demanding bariatric procedures.

Aimed at high-complexity hospitals and surgical centers, this table is optimized for advanced imaging thanks to its 350mm longitudinal slide. This feature allows full C-arm access without the need to reposition the patient. It is the ideal tool for general surgery, traumatology, and cardiovascular interventions.

Design and Technology (or Functionality)

The YR06693 integrates precision hydraulic and electro-hydraulic technology for seamless intraoperative management:

• Total Radiological Access: The 350mm longitudinal sliding motion eliminates blind spots, facilitating real-time X-ray and fluoroscopy usage.
• “Easy Click” System: The leg plate features a quick-connection design that allows both electro-hydraulic and manual control for rapid adjustments during surgery.
• Memory Foam Ergonomics: Antistatic and waterproof memory foam pads designed to prevent pressure ulcers and ensure high hygiene standards.
• Standard Control Panel: A safe and intuitive interface that centralizes all table movements, ensuring an immediate response from the surgical team.
• High-Strength Steel Construction: A stainless steel and metal structure that complies with Class II medical certifications and international safety standards.

Frequently Asked Questions (FAQ)

• What is the maximum weight capacity of the table? The table has an extreme load capacity of 300 kg, maintaining the highest levels of safety and structural stability.
• Is it compatible with image intensifiers (C-arm)? Yes, it is specifically designed with a wide longitudinal slide range to allow free C-arm access without interference from the table base.
• What happens in the event of a power failure? The equipment includes backup mechanisms and a hydraulic power source that allows manual adjustments of critical functions to ensure patient safety.

Advantages and Disadvantages

Advantages:

• Load Capacity: Safely supports bariatric patients (up to 300 kg).
• Versatile Movement: Wide ranges for lateral tilt, Trendelenburg, and back section adjustments.
• Durability: Corrosion-resistant materials and high-quality upholstery for long-term use.
• Safety Certification: Fully compliant with CE regulations and EN hospital safety standards.

Disadvantages:

• Equipment Weight: With a net weight of 315 kg, it requires trained personnel for relocation despite its stable base.
• Initial Investment: As a multifunctional electro-hydraulic unit, it represents a higher investment than conventional mechanical tables.

Field Use and Recommendations

This table is highly recommended for general surgery theaters, trauma units, and angiography rooms. It is particularly useful for any procedure requiring constant intraoperative radiology.

Pro Tip: To extend the life of the electro-hydraulic system, ensure annual preventive maintenance and clean the memory foam pads with non-corrosive disinfectants to maintain the material’s antistatic properties.

Technical Specifications
