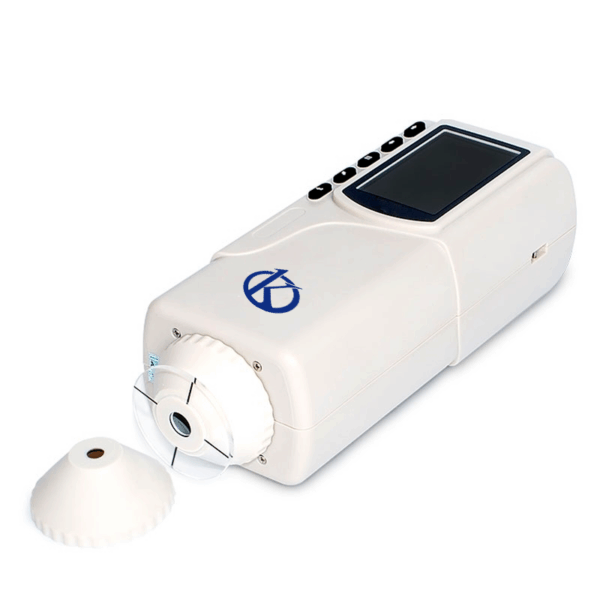

Colorimètre de précision YR05510

Fabricant: Kalstein

Description

The Colorimètre de précision YR05510 is an advanced instrument designed for precise color measurement in various industries, including plastics, electronics, paints, textiles, and cosmetics. With its innovative CIE LAB color space, this device excels in identifying color differences and is especially suited for assessing surface scratches and moist products. Its compact and portable design ensures ease of use, while the integrated rechargeable lithium-ion battery offers convenience without the need for frequent battery replacements.

Market Price

Pricing for high-precision colorimeters like the YR05510 varies significantly, depending on features and brand reputation. This product is typically found within the range of $1000 to $2000, reflecting its precision, reliability, and range of applications. For specific pricing, including potential discounts or promotions, consider requesting a quote through Kalstein Plus.

Frequently Asked Questions

  • How does the YR05510 differ from other models? The YR05510 offers an enlarged measurement aperture of Φ20mm, making it ideal for larger samples.
  • What industries benefit most from this device? It is widely used across diverse fields such as textiles, food, cosmetics, and scientific research.
  • Is it suitable for measuring damp surfaces? Yes, the YR05510 is specifically designed to perform well on moistened products.

Advantages and Disadvantages

This product’s strengths include its high accuracy, portability, and ease of use with no need for frequent calibration, thanks to built-in white plate parameters. A possible downside could be its initial cost, although its long-term savings and performance outweigh the initial investment.

Product Use In Field

In practical applications, professionals utilize the YR05510 to ensure color consistency in production lines, quality control laboratories, and experimental research. It provides precise readings that are crucial for maintaining color standards across different batches.

Recommendations

To maximize the YR05510’s capabilities, it is advisable to keep the battery fully charged and the lens clean. Regular software updates improve functionality and accuracy, ensuring broader compatibility with industry standards.

Features

  • Built-in white plate parameters eliminate the need for regular calibration.
  • Dual aperture options for varied sample types.
  • High-capacity, rechargeable lithium-ion battery.
  • Portable and ergonomic design.
  • Cost-effective performance with high production quality.

Technical Specifications

Model YR05510
Illumination/View Geometry 45°/0°
Measurement Aperture Φ20mm
Special Function Particularly suitable for testing surface scratches and moist products.
Location LED/Cross positioning
Detector Silicon photodiode
Colorimetric Space CIEL*a*b*C*h* ; CIEL*a*b* ; CIEXYZ
Color Difference Formula △E*ab ; △L*a*b* ; △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Error Between Each Team ≤0.50ΔE*ab
Storage 100 standards, 20000 samples
Repeatability Standard deviation in ΔE*ab 0.08, average of 30 standard measurements on white plate
Weight 500g
Dimensions 205×67×80mm
Power Source Rechargeable lithium-ion battery 3.7V 3200mAh
Lamp Life 5 years, over 1.6 million measurements
Charging Time The first charge time is 8 hours for 100% power
Computer Software CQCS3 Software
Printer (Optional) Miniature thermal printer

Informations complémentaires

Poids 2 kg
Dimensions 28 × 15 × 35 cm
