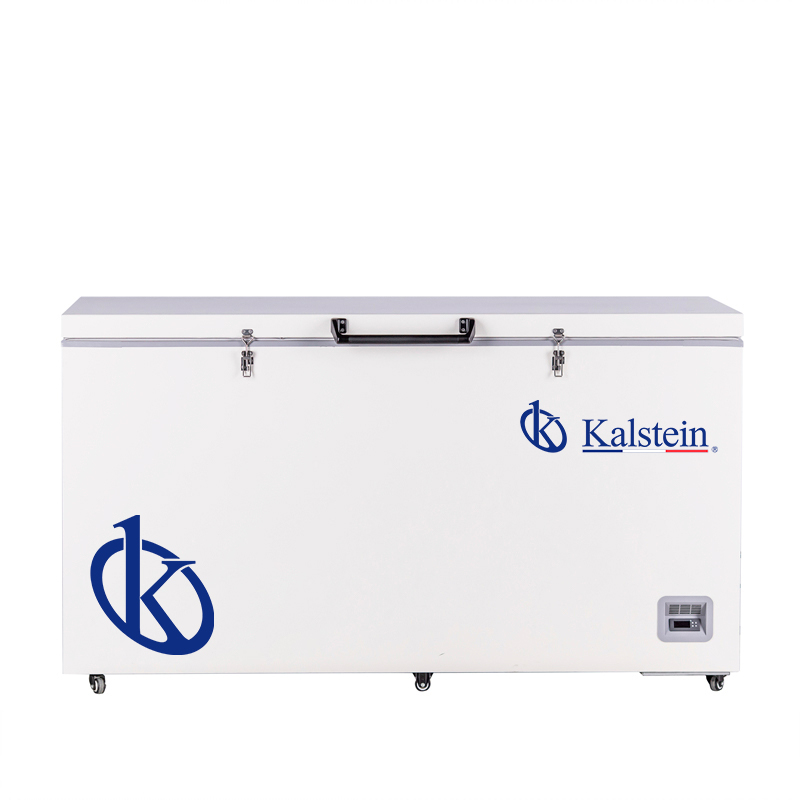

Chest Freezer YR05104

Manufacturer: Kalstein

Product Description

  • Microprocessor control, adjustable temperature range: -30CºC to -40ºC
  • LED digital display and increment at 0.1ºC
  • High density CFC-Free urethane foam insulation.
Ergonomic Design
  • USB data logging and temperature recorder (optional).
  • Build-in lock with safety and beauty
  • Lockable caster design for customer to move as need
  • Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
  • LED digital display for clear observation,
  • Wide voltage tolerance design with applicable voltage range of 187-242V/AC
Safety
  • Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
  • Two types of alarm indications: audible buzzing and visual flashing light.
  • Corrosion proof cabinet interior design
Details Model Number YR05104
Specificaitons
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 3.45
Noise(db) 55
Ambient temperature(℃) 10~32℃
Temperature range(℃) ·-20~40℃
Cooling system
Compressor brand/QTY CUBIGEL/1
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 295W
Current(A) 2.45A
Details Model Number YR05104
Material
Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size
Capacity(L/cu.ft) 485/17.12
NT./GT.(kg) 108/135
Exterior size(W*D*H)(mm) 1670*810*930
Interior size(W*D*H)(mm) 1455*525*665
Package size(W*D*H)(mm) 1775*880*1060
CBM 1.66
20GP/40GP/40HQ 12/26/26
Alarm
High/low temperature Y
Power failure Y
Sensor error Y
Temperature controller failure Y
Power failure backup system(alarm) 12h
Accessories
Castor Y
Test hole QTY/diameter 1
Other Certification ISO9001,13485,
14001,CE

Additional Information

Weight 158 kg
Dimensions 175 × 87 × 111,5 cm
