Description

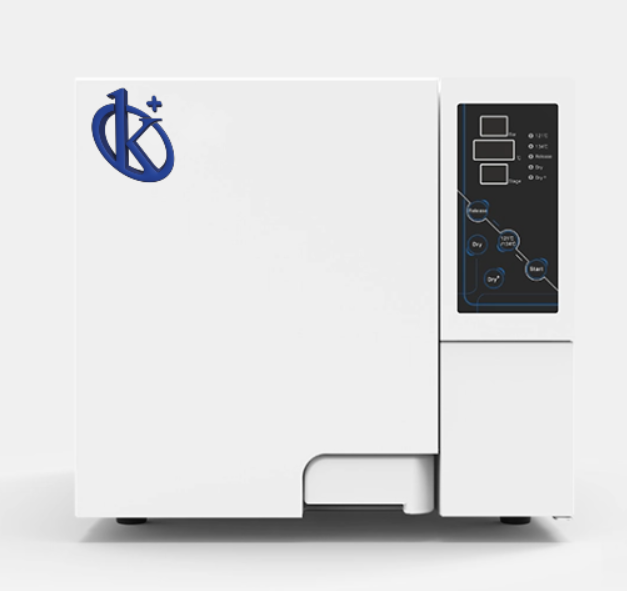

The Autoclave de Table Classe N YR03395 / YR03400 is an effective and compact solution designed for sterilization in medical, dental, and laboratory environments where reliability and ease of use are essential. This model operates with standard pre-programmed cycles at 134 °C and 121 °C, effectively disinfecting solid instruments without cavities or packaging. Unlike more complex models, it does not feature a steam generator or integrated water reservoir—the user must manually fill the chamber before each cycle. This feature makes it ideal for users who prefer to have complete control over every step of the process. The LED screen provides real-time information on temperature, pressure, cycle duration, and safety alerts. Discover more and request a personalized quote or generate an instant estimate via the Kalstein Plus platform for your medical center or laboratory needs.
Price in the Market
In the market, table-top autoclaves such as the Autoclave de Table Classe N can vary significantly in price depending on the brand, features, and capacity. For this model, you can expect prices to range between 1100 USD to 1900 USD, making it a competitive choice for those seeking a balance between cost and performance.
Frequently Asked Questions
Q: Does this autoclave require any special water?
A: Yes, it is recommended to use distilled water to prolong the autoclave’s lifespan and ensure efficient sterilization.
Q: How often should the chamber be filled manually?
A: The chamber needs to be filled before each sterilization cycle.
Q: Is there a drying feature included?
A: No, this model does not include a drying feature.
Advantages and Disadvantages
Advantages of this autoclave model include its compact size, intuitive interface, and low maintenance cost. The automatic safety lock feature enhances operational safety. However, its reliance on manual chamber filling can limit its use for unsupervised, intensive cycles.
Use of the Product in the Field
This autoclave is widely used in dental offices, veterinary clinics, and small laboratories, where quick and effective sterilization is needed without requiring large volumes. It is ideal for frequent cycles with simple instruments, maintaining high biosafety standards without compromising space or budget.
Recommendations
To ensure the longevity of the autoclave, it is advised to use only distilled water, conduct regular internal cleaning, and avoid overloading the chamber. It is also crucial to verify parameters before each cycle to guarantee correct sterilization.
Features
– Compact design for limited space environments
– Manual chamber filling for customizable control
– LED screen provides real-time status updates
– Pre-programmed sterilization cycles at 134 °C and 121 °C
– Automatic safety lock for enhanced security
Technical Specifications
Model | YR03395/YR03396 | YR03397 /YR03398 | YR03399 /YR03400 |
Voltage. Frequency | 220/110V, 50/60Hz | ||
Power | 1500W | ||
Chamber Volume | Approx. 18L (E318/E418/E518), Approx. 23L (E323/E423/E523) | ||
Chamber Dimensions | Ø247x350mm (18L), Ø247x450mm (23L) | ||
Tray Size (L x H) | 192x285mm (18L), 192x380mm (23L) | ||
Tray Material | Aluminum | ||
Number of Trays | 2/ Max. 4 | ||
Weight | 32kg/36kg | 33kg/37kg | 33.5kg/37.5kg |
Overall Dimensions (L x H x D) | 483x450x515 mm (E318/E418/E518) 483x450x615 mm (E323/E423/E523) |
||
Sterilization Program | 134℃/210Kpa, 121℃/110Kpa | ||
Sterilization Time | 134℃, Default 30min (30~60min adjustable) 121℃, Default 10min (10~20min adjustable) |
||
Drying | No | Default 60min (1~60min adjustable) | Default 60min (1~60min adjustable) |
Additional Drying | No | No | Default 60min (1~60min adjustable) |
