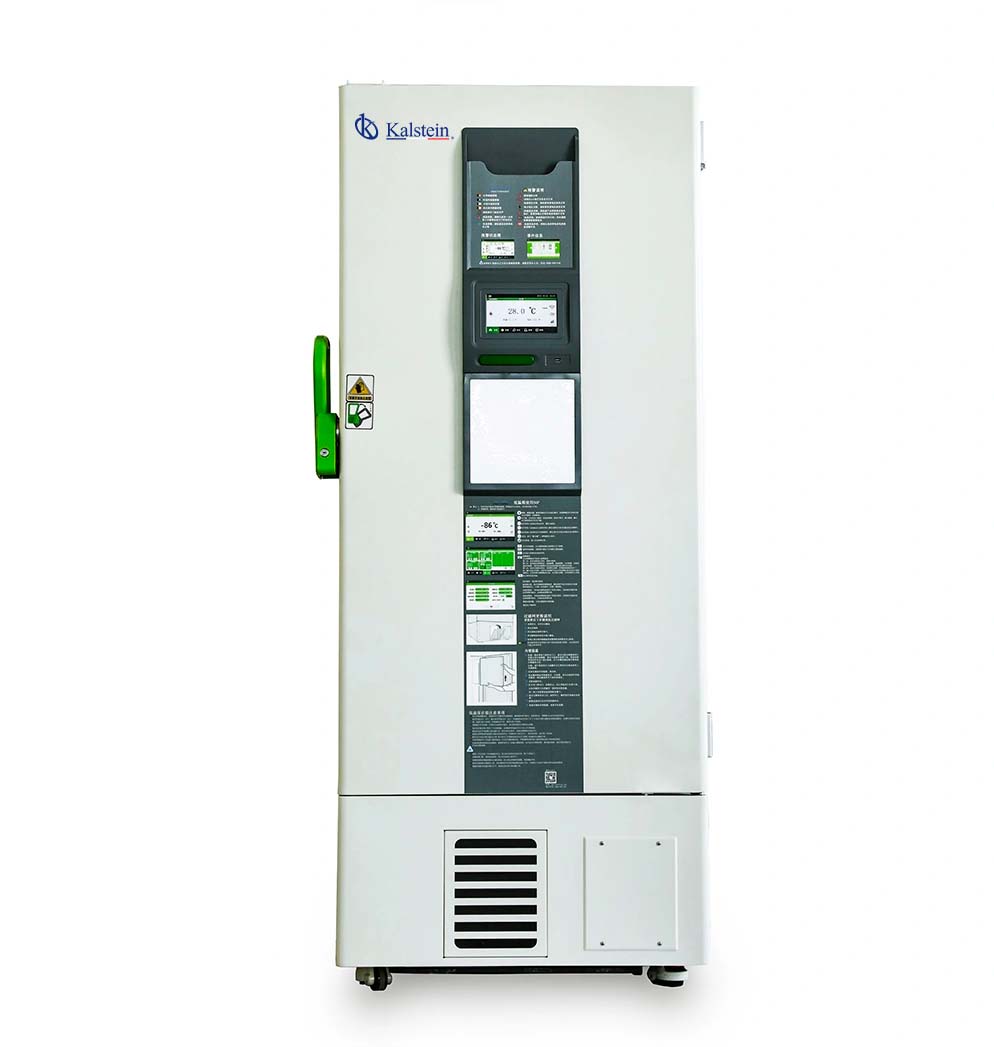

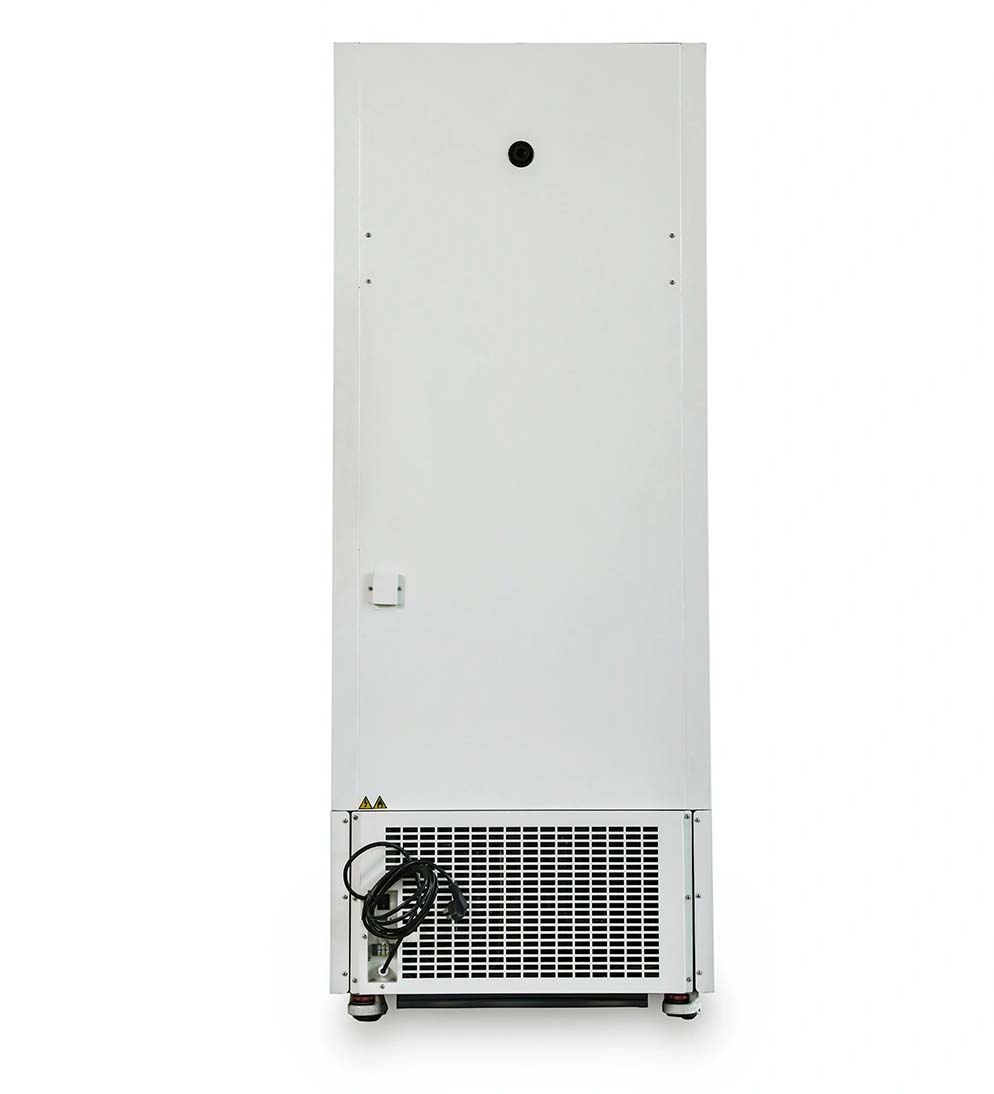

588 Liters en acier pulvérisé couleur Freezer droit de laboratoire YR05303

The 588 Liters Stainless Steel Freezer YR05303 is the perfect solution for laboratories requiring reliable storage for sensitive biological products. With dual refrigeration systems, this laboratory freezer offers efficient cooling with adjustable temperatures ranging from -40°C to -86°C. Each refrigeration system can independently maintain -80°C, ensuring increased safety for stored samples. The sophisticated microprocessor control and visual and audible alarms ensure maximum protection and continuous monitoring of internal conditions.

Market Price

The YR05303 upright freezer is offered at a competitive market price ranging from $10,500 to $11,400 USD. This price includes advanced features such as energy efficiency, large storage capacity, and robust security systems. It is an ideal choice for research laboratories, hospitals, and blood banks that require a reliable and high-capacity solution for long-term biological storage.

Frequently Asked Questions

• Does this freezer maintain its temperature during a power outage? Yes, the YR05303 features a backup system that keeps alarms and temperature displays running for up to 72 hours without external power, thereby ensuring sample safety.
• How is temperature controlled in this freezer? The freezer is equipped with a microprocessor control system and LCD screen, allowing precise temperature adjustments between -40°C and -86°C. It also has audio and visual alarms for temperature fluctuations and system failures.
• Is this model suitable for transporting biological products? Although primarily designed for stationary storage, the YR05303 can transport biological products if it remains connected to a suitable power source and is properly secured during transit.

Advantages and Disadvantages

Advantages:

• Energy Efficiency: The dual-refrigeration system with eco-friendly refrigerant offers up to 50% energy savings compared to other models.
• Large Storage Capacity: At 588L, it can store up to 40,000 samples, perfect for high-demand environments.
• Advanced Technology: The LCD screen and microprocessor control facilitate accurate temperature management.
• Safety Alarms: Visual and audible alarms notify users of any temperature issues, power losses, or system malfunctions.

Disadvantages:

• High Price: Although competitive, its price may be a barrier for organizations with limited budgets.
• Regular Maintenance Required: Like all high-quality equipment, preventive maintenance is recommended to ensure ongoing functionality and extended life.

Product Use in the Field

The YR05303 is primarily used in research laboratories, blood banks, and hospitals where the preservation of sensitive biological materials such as vaccines, blood plasma, and stem cells is crucial for effective treatment and clinical studies. Its optimized design and storage capacity make it ideal for institutions managing large volumes of samples needing precise temperature control.

Recommendations

To maximize performance and lifespan of the YR05303 upright freezer, regular preventive maintenance is advised. Frequently check the internal temperature and ensure that the cooling system and alarms are functioning properly. Always keep the doors closed tightly to prevent unnecessary thermal fluctuations. If planning to use the freezer for transporting biological products, ensure it is connected to a reliable power source and securely fastened during transport.

Features

• Dual refrigeration system for enhanced cooling efficiency
• Microprocessor temperature control with LCD display
• Large capacity capable of storing up to 40,000 samples
• Equipped with visual and audible safety alarms
• Energy-efficient and environmentally friendly refrigerants
• Optional backup systems for CO2 and LN2

Technical Specifications

Model		YR05303
Specifications	Shelf/Drawers Qty	Stainless steel shelf/3
	Cooling Method	Direct cooling
	Defrosting	Manual
	Refrigerant	Mixed-gas
	Power Consumption (kWh/24h)	16.5
	Noise (db)	53
	Ambient Temperature (°C)	10~32ºC
	Temperature Range (°C)	-40~-86ºC
Cooling System	Compressor Brand/Qty	SECOP/2
	Sensor	CTP
	Temperature Controller	Microprocessor
	Display	LCD display
Power	Voltage/Frequency (V/Hz)	220/50Hz
	Power (W)	1500W
	Current (A)	9.1A
Material	Internal Material	Stainless steel
	External Material	Powder sprayed color steel
	Insulation	PURF
Size	Capacity (L/cu.ft)	588
	NT./GT. (kg)	297.5/358.5
	External Size (L*W*H) (mm)	885*1100*1995
	Internal Dimensions (L*W*H) (mm)	606*738*1310
	Packing Size (L*W*H) (mm)	970*1140*2190
	CBM	2.42
	20GP/40GP/40HQ	24/12/24
Frozen Racks	Supports	16(5X5)
	Boxes (2 Inches)	400
	Samples (2 ml)	40000
Alarm	High/Low Temperature	Yes
	Power Failure	Yes
	Abnormal Voltage	Yes
	Sensor Error	Yes
	Filter Screen Check	Yes
	Thermostat Failure	Yes
	Low Battery	Yes
	Clean Condenser	Yes
	High Ambient Temperature	Yes
	Door Ajar	Yes
	Power Failure Backup System (Alarm)	72h
Accessories	Casters	Yes
	Inner Door	2
	Test Hole Qty/Diameter	1/25MM
	USB Port	Yes
	Chart Recorder	/
	Data Logger	Optional
	Remote Alarm Port	Yes
Optional	CO2 Back-up System	Optional
	LN2 Back-up System	Optional
Other	Certificate	ISO.CE
