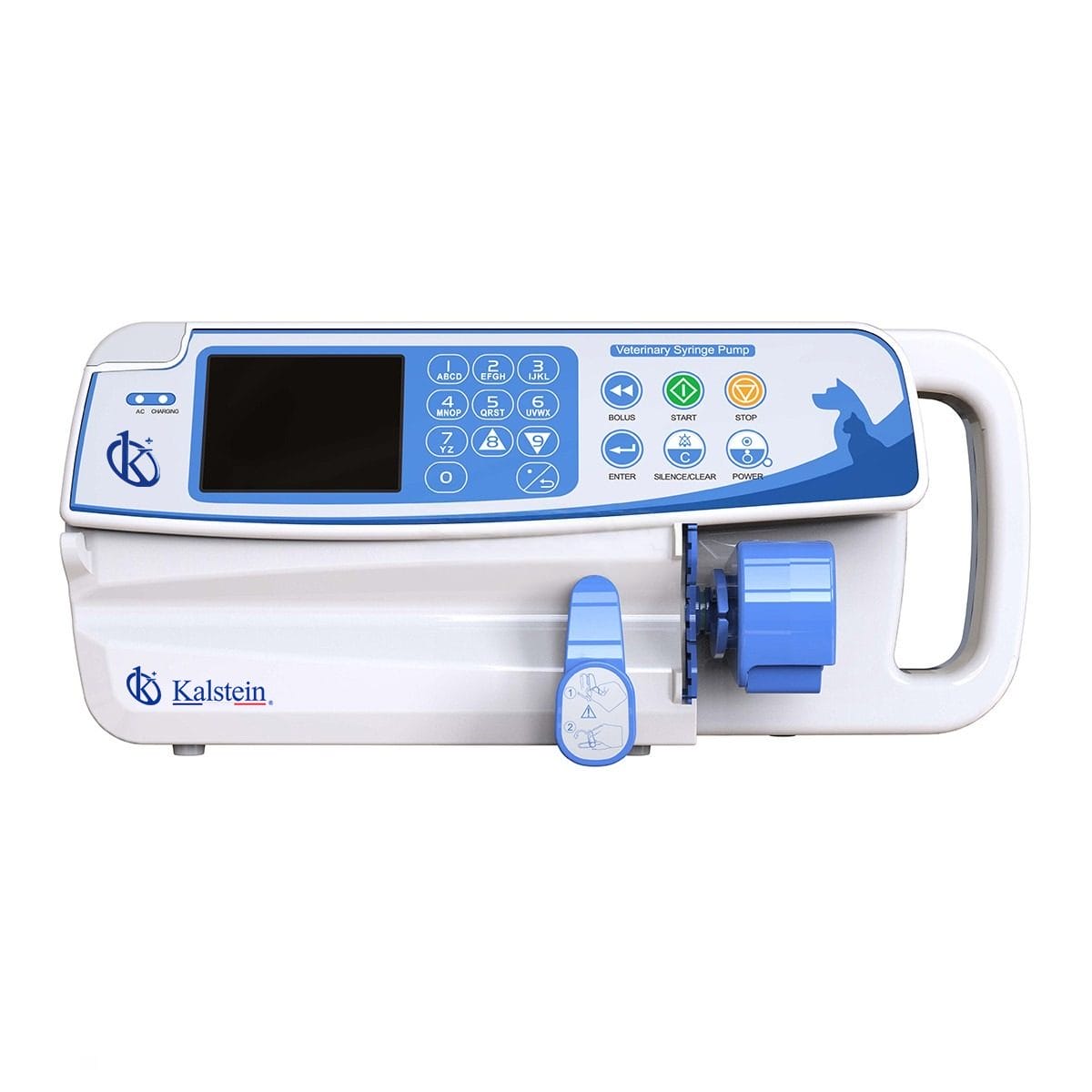

Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Syringe Pump YR06185 is a cutting-edge device designed to provide precise control over the delivery of medications and fluids to animals. Featuring a large and colorful LCD display, this syringe pump offers an intuitive interface that simplifies operation in veterinary settings. It includes advanced features like unique syringe intelligent recognition technology, a dynamically displayed pressure, and a double CPU to ensure safe infusion. The device's design accommodates various brands of sterile syringes ranging from 5ml to 60ml. Its 90-degree rotatable pole clamp provides adaptable installation for horizontal bars and vertical IV poles, making it a versatile choice for any clinic. Additionally, it includes adjustable alarms and an anti-bolus function to prevent medication spikes, which makes it a reliable tool for animal care.
Market Price
Understanding the market pricing of veterinary syringe pumps is crucial for making informed purchasing decisions. The typical price range for veterinary syringe pumps like the YR06185 generally falls between $77,000 to $78,000 USD. This average is derived from industry standards and reflects the level of sophistication and technology involved in such medical devices.
Frequently Asked Questions
What types of syringes can the pump accommodate?
The YR06185 is compatible with several brands and sizes of sterile syringes: 5ml, 10ml, 20ml, 30ml, and 50ml/60ml.
How long does the battery last?
The rechargeable Li-polymer battery can operate the syringe pump for more than 12 hours after a full charge at a rate of 5ml/h, under a temperature of 25°C.
Are there visual and audible alarms?
Yes, this device comes equipped with various visual and audible alarms for different scenarios such as infusion completion, low battery, and more.
Advantages and Disadvantages
The YR06185 syringe pump has numerous advantages, including its ease of use, wide syringe compatibility, and advanced safety features like double CPU and anti-bolus functions. Its bright LCD and adjustable settings are significant benefits for veterinary staff. However, some users may consider its price as a potential disadvantage compared to simpler models.
Product Use in the Field
In a practical setting, the Veterinary Syringe Pump YR06185 can be used in veterinary clinics for precise medication delivery. Veterinarians and their staff appreciate the pump's ability to switch between dose, time, and rate infusion modes, depending on the requirements of the treatment.
Recommendations
For optimal performance, ensure that the syringe pump is calibrated correctly for accuracy within ±2%. Regular maintenance and timely charging of the battery will enhance its durability and functionality.
Features
- Large & colorful LCD display
- Historical records capability
- 90-degree rotatable pole clamp
- Unique syringe recognition technology
- Dynamic pressure display
- Double CPU for safe infusion
- RS232 interface
- Adjustable buzzer volume
- Anti-bolus functionality
- Various visual and audible alarms
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
Spécifications techniques
| Dimensions | L 40 × W 22 × H 21 cm |
|---|---|
| Poids | 3 kg |
| Fabricant | Kalstein |
Galerie d'images
Vidéo Veterinary Syringe Pump YR06185
Questions fréquentes
Comment connaître les prix de Veterinary Syringe Pump YR06185 ?
Pour connaître le prix de Veterinary Syringe Pump YR06185, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Veterinary Syringe Pump YR06185 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Veterinary Syringe Pump YR06185 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Veterinary Syringe Pump YR06185 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Veterinary Syringe Pump YR06185 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
