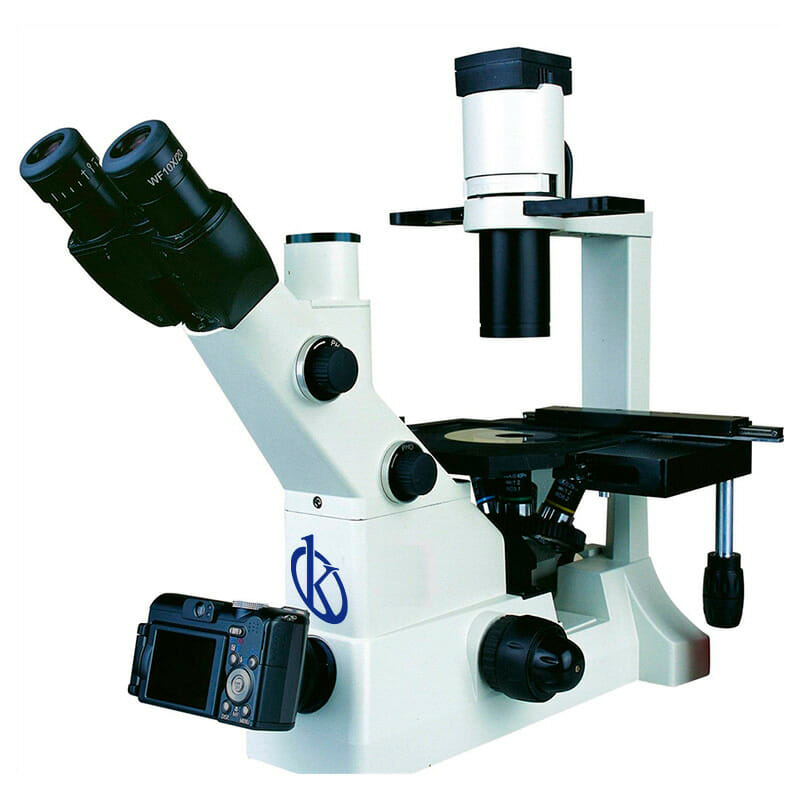

Microscope Inversé YR0245
Microscope Inversé YR0245 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Inverted Microscope YR0245 stands as a beacon of quality and precision in the realm of laboratory equipment. Designed with an advanced Infinity Optical System and a binocualr Siedentopf head, this microscope offers a remarkable viewing experience for all users. Its ergonomic design, coupled with high-performance optics, allows for detailed imaging and analysis, making it an essential tool for any laboratory setting. The large working stage and mechanical stage controls provide ease of use, while the halogen lighting ensures clear visibility of your specimens.
Market Price
The Inverted Microscope YR0245 is competitively priced within the range of high-performance laboratory microscopes. While the exact price can vary, consumers can expect to find this model within a general market range of approximately $2,500 to $3,500 USD. This range reflects the superior quality and precision engineering of the product, justified by its robust features and reliable performance.
Frequently Asked Questions
What distinguishes the YR0245 from other microscopes? The YR0245 offers an Infinity optical system that provides unmatched image clarity and a versatile stage design that accommodates various specimen sizes, including Petri dishes.
Is the lighting adjustable? Yes, the microscope comes with a 6V/30W halogen lamp with adjustable brightness for optimal viewing conditions.
What sample types can it accommodate? The wide range of objectives and large working distance make it ideal for both biological and material samples.
Advantages and Disadvantages
Advantages: High-quality imagery, versatile sample accommodation, ergonomic design, and robust construction.
Disadvantages: Requires careful handling during operation and maintenance to preserve the optics quality.
Field Use
The Inverted Microscope YR0245 is extensively used in clinical, biological, and research laboratories worldwide. Its durability and precision allow for detailed analysis of cell cultures, bacterial specimens, and more, making it invaluable for routine and specialized laboratory work.
Recommendations
To ensure the long-lasting performance of your YR0245, it's advised to regularly clean the lenses with a soft, lint-free cloth and store it in a dust-free environment. Additionally, engaging in regular maintenance checks will help sustain its optical accuracy and structural integrity.
Features
- Infinity Optical System
- Binocular Siedentopf head with 360° rotation
- Large working stage for versatility
- Adjustable halogen lighting
- Durable construction with ergonomic design
Technical Specifications
| Models | YR0245 | |
| Optical System | Infinity Optical System | |
| Head | Binocular Siedentopf head, inclined at 45°, rotatable 360°, interpupillary 48-75 mm | |
| Eyepiece | Widefield eyepiece WF10×/22, tube diameter 30 mm | |
| Nosepiece | Quintuple rotating objective turret | |
| Objective | LWD Infinity Plan Achromatic Objective 4x//0.10 WD=22 | |
| Plan Infinite Phase Contrast Objective LWD | 10x/0.25WD=6 | |
| 20x//0.4WD=3.1 | ||
| 40x/0.55WD=2.2 | ||
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002 mm, upward movement range 4.5 mm / downward 4.5 mm | |
| Condenser | ELWD Condenser NA0.3, long working distance 72 mm, | |
| Without condenser reaching 150 mm sufficient for Petri dishes | ||
| Phase Contrast | Centering telescope (φ30 mm) | |
| Phase ring plate 10x, 20x, 40x (adjustable) | ||
| Work Stage | Large simple work table 230×170 mm | |
| Glass insert | ||
| Removable mechanical stage, coaxial X, Y control, travel range 80 × 120 mm | ||
| Auxiliary stage | ||
| Terasaki holder | ||
| Petri dish holder φ38 | ||
| Petri dish holder φ54 | ||
| Lighting | Halogen lamp 6V/30W, brightness adjustable | |
| Filter | Blue, Green, Frosted Glass, Dia. 45 mm | |
| Optional Gadgets | Item Number | |
| Eyepiece | Widefield eyepiece WF15x/16 | YR0245-op1 |
| Widefield eyepiece WF20x/12 | YR0245-op2 | |
| Objective | Lamp housing adjustment target | YR0245-op3 |
| Adapter | 1.0x C Mount | YR0245-op4 |
| 0.5x C Mount | YR0245-op5 | |
Spécifications techniques
| Dimensions | L 63 × W 35 × H 62 cm |
|---|---|
| Poids | 15 kg |
| Fabricant | Kalstein |
Vidéo Microscope Inversé YR0245
Questions fréquentes
Comment connaître les prix de Microscope Inversé YR0245 ?
Pour connaître le prix de Microscope Inversé YR0245, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Microscope Inversé YR0245 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Microscope Inversé YR0245 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Microscope Inversé YR0245 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Microscope Inversé YR0245 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
