Inverted LED Fluorescent Microscope YR05791 - YR05792
Inverted LED Fluorescent Microscope YR05791 - YR05792 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

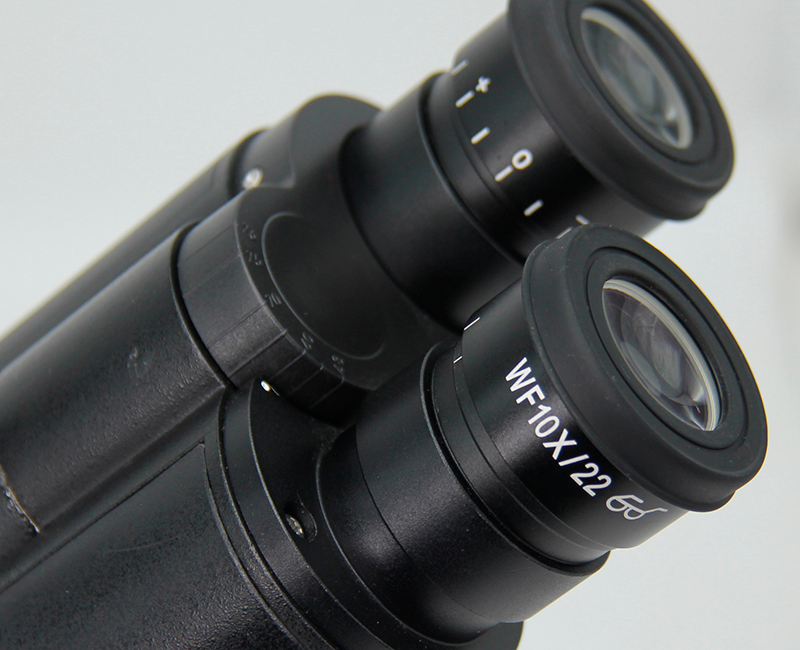

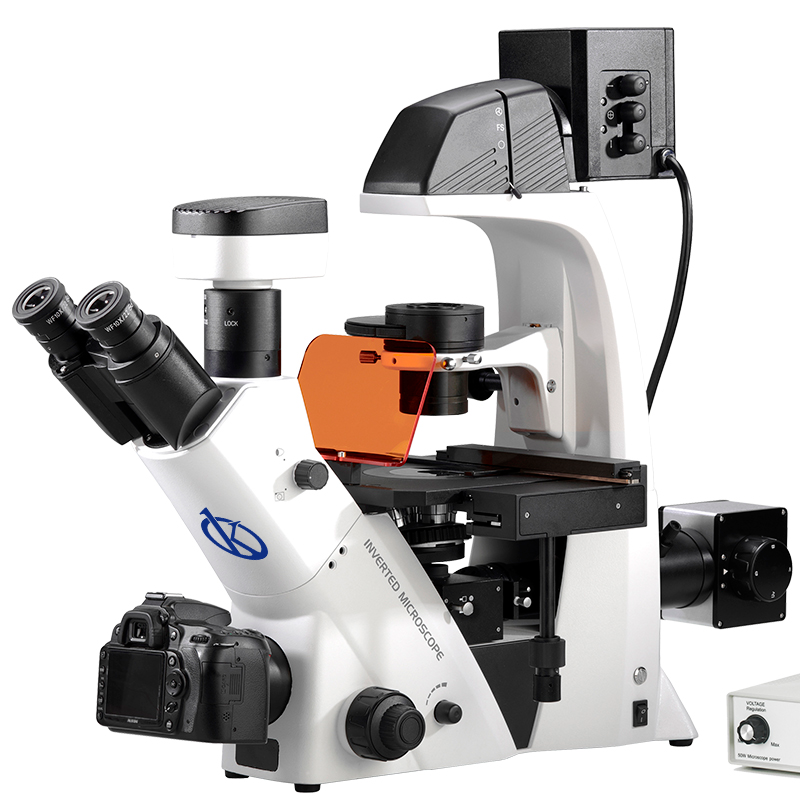

The Inverted LED Fluorescent Microscope YR05791 - YR05792 is an advanced optical instrument designed for both professional research and clinical diagnostics. Featuring a Seidentopf Trinocular Head with a 45° inclination, this microscope offers a convenient viewing experience with an adjustable interpupillary range from 48 to 76mm. Equipped with WF10x/22mm high-eyepoint eyepieces and a light split switch, it ensures precision and ease of use. The Kohler Illumination system, powered by a 12V/50W halogen lamp, and the LWD Infinity Plan Phase Contrast Fluorescent Objectives provide exceptional clarity and contrast, making it ideal for observing both living and fixed specimens in various research fields.
Market Price
When considering an investment in high-quality laboratory equipment such as this microscope, pricing usually ranges from approximately $666,500 to $667,000 USD. This range reflects the advanced features and the robust design of the microscope, positioning it as a competitive choice for professionals in biological and medical research. For specific pricing details tailored to your needs, we encourage you to request a quotation through our Kalstein Plus platform.
Frequently Asked Questions
Q: What is the primary use of the Inverted LED Fluorescent Microscope?
A: It is primarily used for observing cell cultures and other biological samples under fluorescence and phase contrast.
Q: Can this microscope connect to a digital camera?
A: Yes, it comes with a photo adapter compatible with Canon SLR digital cameras, allowing for easy image capturing.
Advantages and Disadvantages
The main advantages include high-quality imaging, ease of use with adjustable settings, and a versatile design suitable for various applications. However, the advanced features might be overwhelming for beginners, and the price may be a barrier for small laboratories.
Product Use in the Field
This microscope is particularly valuable in laboratories where cellular studies are crucial, such as in genetics or microbiology. Its advanced illumination and imaging capabilities allow detailed observation of samples in environments that require precise conditions.
Recommendations
To maximize the microscope's performance, regularly clean the lenses and filters with suitable products, and ensure that the illumination system is calibrated according to the manufacturer's instructions. For extended use, activate the auto power-off feature to conserve energy.
Features
- Seidentopf Trinocular Head
- Koehler Illumination Halogen 12V/50W
- LWD Infinity Plan Fluorescent Objectives

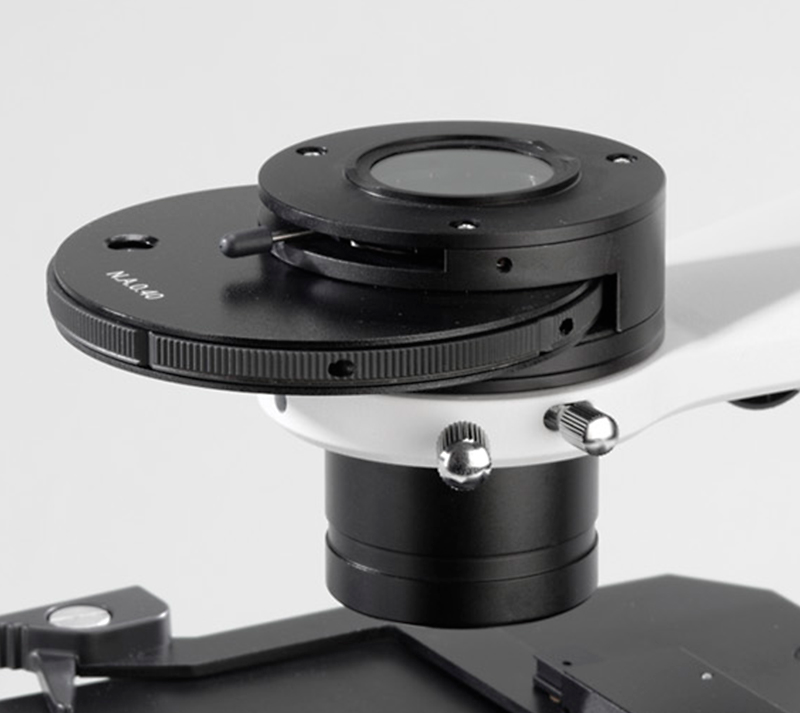

- Phase Contrast Condenser
- ECO Auto Power Off System
- Photo Adapter for Canon SLR
Technical Specifications
| Model | YR05791 | YR05792 |
| Features | Infinity DualPhoto Port ECO (Auto Power Off) | |
| Optical System | Infinity Plan | |
| Head Type | Seidentopf Trinocular | |
| Head Interpupillary | 48~76mm | |
| Head Light Path | E100:P0/E20:P80 | |
| Eyepiece Features | Diopter Adjustable | |
| Eyepiece Diameter | 30.0mm | |
| Nosepiece Holes | 5 holes | |
| Objective Features | LWD | |
| Objective Type | Infinity Plan Phase Contrast | |
| Working Stage Features | Size ≥140x140mm | |
| Working Stage Type | Fixed + Attachable | |
| Focusing Features | Tension Adjustable | |
| Condenser Features | Slor for PH Slide | |
| Condenser Type | Phase Contrast | |
| Condenser N.A | 0.4 | |
| Light Source Features | Kohler Illumination LED 5W Halogen 30W Transmit & Reflect | |
| Light Source Type | Halogen Fluorescent | |
| Video Adapter | C-Mount 0.3x | |
| Fluorescent Band | 3 Bands | - |
Technical specifications
| Dimensions | L 66 × W 60 × H 33 cm |
|---|---|
| Weight | 17 kg |
| Manufacturer | Kalstein |
