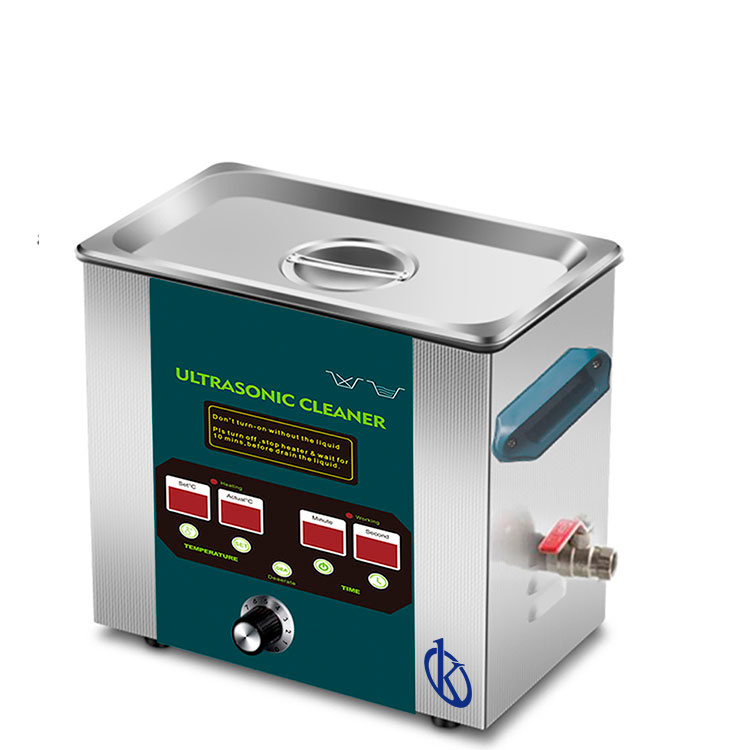

Desktop Ultrasonic Cleaner YR05220 // YR05228

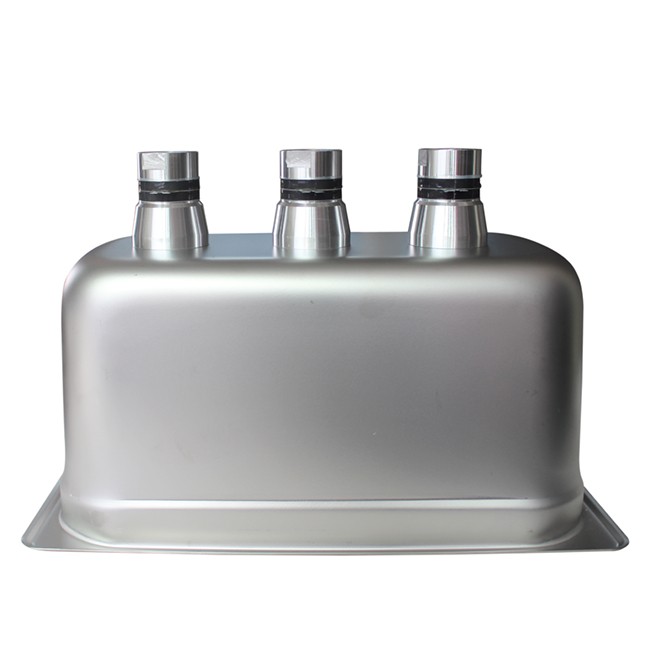

The YR05220 // YR05228 desktop ultrasonic cleaner offers high capacity and exceptional cleaning efficiency. With models ranging from 3.2 to 30 liters, these cleaners are ideal for various applications, such as cleaning medical instruments, industrial components, and fine jewelry. By utilizing high-Q industrial transducers, these cleaners convert energy into powerful ultrasonic waves, delivering a deep, thorough cleaning. The integrated degassing function and precise controls for temperature and time further enhance performance, making this series an excellent choice for laboratories, workshops, and clinics.

Market Price

The YR05220 // YR05228 series is priced between $240 and $670 USD, depending on the model and tank capacity. For smaller, more compact needs, the YR05220 with a 3.2-liter tank is an efficient option. Larger models, like the YR05228 with 30 liters, are ideal for industrial applications and high-volume cleaning tasks.

Frequently Asked Questions

• What is the tank capacity of the YR05228, and what is it used for? The YR05228 has a 30-liter tank, perfect for cleaning large parts or handling multiple items at once. It is particularly well-suited for industrial uses, such as cleaning mechanical parts or electronics.
• Is ultrasonic cleaning safe for delicate medical instruments? Yes, ultrasonic cleaning technology ensures thorough cleaning without damaging delicate surfaces, making it an ideal solution for medical instruments, dental tools, and other sensitive equipment.

Advantages and Disadvantages

The YR05220 // YR05228 series offers multiple benefits:

• High cleaning capacity combined with energy efficiency.
• Full control over power and temperature (up to 80°C), allowing for tailored cleaning processes.
• Each model includes a drain valve, simplifying liquid management post-cleaning.
• The degassing function removes air bubbles from the cleaning liquid, enhancing cleaning performance.

However, models like the YR05228, due to their size and weight, can be less portable, which may be a drawback in smaller spaces or more mobile settings.

Field Use

The YR05220 // YR05228 ultrasonic cleaners are widely adopted across various industries:

• In dental clinics, they ensure proper disinfection of instruments.
• In mechanical workshops, they clean car parts thoroughly.
• In laboratories, they eliminate contaminants from tools and precision instruments.

Their ability to reach hard-to-clean areas makes them indispensable for any precision cleaning tasks.

Recommendations for Optimal Use

To get the best results from your ultrasonic cleaner, it’s important to use ultrasonic-specific cleaning solutions and carry out regular tank maintenance. If you're interested in one of these models, request a quote or generate an automatic quote through Kalstein Plus. This platform provides tailored solutions for your business or laboratory needs.

Technical Specifications

Models	YR05220	YR05221	YR05222	YR05223
Capacity (L)	3,2	5	4,87	6,8
Working frequency	40 KHz	40 KHz	40 KHz	40 KHz
Ultrasonic Power	120 W	120 W	180 W	180 W
Degas	Yes	Yes	Yes	Yes
Heating power	100 W	200 W	200 W	200 W
Synchronization time (minutes)	ine-99	jan-99	jan-99	ene-99
Temperature range	0-80°C	0-80°C	0-80°C	0-80°C
Power Regulation	0-100%	0-100%	0-100%	0-100%
Cover	Yes	Yes	Yes	Yes
Drain Valve	Yes	Yes	Yes	Yes
Washing basket	Optional	Optional	Optional	Optional
Inner tank dimension (mm)	240 x 135 x 100	240 x 135 x 150	300 x 150 x 100	300 x 150 x 150
Packing size (mm)	342 x 240 x 355	342 x 240 x 355	402 x 252 x 355	412 x 357 x 380
Gross weight (kg)	6,7	7,2	7,5	6,21



Models	YR05224	YR05225	YR05226	YR05227	YR05228
Capacity (L)	11	15	20	22	30
Working frequency	40 KHz	40 KHz	40 KHz	40 KHz	40 KHz
Ultrasonic Power	240 W	360 W	360 W	480 W	600 W
Degas	Yes	Yes	Yes	Yes	Yes
Heating power	300 W	400 W / 220V	400 W / 220V	600 W / 220V	600 W / 220V
Synchronization time (minutes)	ine-99	jan-99	jan-99	jan-99	ene-99
Temperature range	0-80°C	0-80°C	0-80°C	0-80°C	0-80°C
Power Regulation	0-100%	0-100%	0-100%	0-100%	0-100%
Cover	Yes	Yes	Yes	Yes	Yes
Drain Valve	Yes	Yes	Yes	Yes	Yes
Washing basket	Optional	Optional	Optional	Optional	Optional
Inner tank dimension (mm)	300 x 240 x 150	330 x 300 x 150	330 x 300 x 200	500 x 300 x 150	500 x 300 x 200
Packing size (mm)	472 x 437 x 420	472 x 437 x 470	472 x 437 x 470	675 x 454 x 430	657 x 450 x 475
Gross weight (kg)	8,5	11,5	12,5	14,5	16
