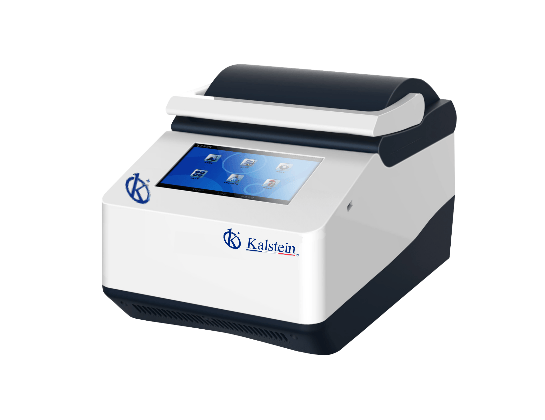

PCR Thermal Cycler YR06070: Buying Criteria and Validation
The PCR Thermal Cycler YR06070 is the ideal solution for laboratories seeking fast, accurate, and reproducible results in their PCR experiments. This device comes equipped with a 7-inch color touchscreen, making it user-friendly even for novice users. Its aluminum thermal block ensures uniform and precise temperatures, while fast and controlled ramp rates allow for shorter cycles without compromising result quality. Moreover, its compact and quiet design (55 dB) makes it perfect for any laboratory environment.
Product Description
The PCR Thermal Cycler YR06070 stands out in the market due to its advanced features and reliable performance. With a reaction volume capacity of 0-100μL, it is capable of handling a variety of sample sizes effectively. The thermal block technology is based on Peltier elements, providing excellent heating and cooling rates. The uniformity of temperature is maintained at ±0.2℃, ensuring that every sample is treated equally during the thermal cycling process. The device is designed to support various consumables, including individual tubes of 0.2 ml, 8-strip tubes of 0.2 ml, and 96-well plates of 0.2 ml, making it versatile for different laboratory needs.
| Feature | Details |
|---|---|
| Model | YR06070 |
| Reaction Volume | 0-100μL |
| Thermal Block Material | Aluminum |
| Compatible Consumables | 0.2 ml individual tube, 0.2 ml 8-strip tubes, 0.2 ml 96-well plates (with or without skirt) |
| Temperature Control Range | 4℃-99℃ |
| Heating Rate | ≥ 3.5℃/s |
| Cooling Rate | ≥ 2.5℃/s |
| Uniformity of Temperature | ±0.2℃ |
| Power Supply | AC 100-240 V, 50-60 Hz |
| Max Power Consumption | 600VA |
Market Price
The PCR Thermal Cycler YR06070 is competitively priced in the market, ranging between $3390 and $3395 USD, depending on the supplier and additional features included, such as technical support and options for specialized consumables. For an accurate and personalized quote, it is advisable to request a quote through established channels that cater to laboratory needs.
Frequently Asked Questions
Is the YR06070 easy to use?
Yes, its intuitive interface and 7-inch touchscreen make it extremely easy to program and operate, even for users with no prior experience.
What consumables are compatible with this model?
It is compatible with individual tubes of 0.2 ml, 8-strip tubes of 0.2 ml, and 96-well plates of 0.2 ml (with or without skirt).
What happens if there is a power failure during an experiment?
The YR06070 is designed with power failure protection, allowing it to save the current settings and resume the experiment once power is restored.
What are the advantages of the YR06070?
Advantages include high temperature precision (±0.1°C) and uniformity (±0.2°C), rapid heating and cooling speeds for more efficient cycles, storage and sharing capabilities for protocols, and protection against power failures.
Are there any disadvantages to consider?
Some disadvantages include potentially high costs for laboratories with limited budgets and the need for trained personnel to ensure optimal use and prolong the device's lifespan.
Field Usage
The PCR Thermal Cycler YR06070 is indispensable in genetic research laboratories, molecular diagnostics, and biotechnology. It is widely used for DNA/RNA amplification, genotyping tests, and gene expression studies. Its compact design makes it easy to integrate into laboratories with limited space while its ability to manage multiple types of consumables allows for a wide range of experimental applications. The capability to share protocols via USB makes it an excellent choice for collaborative work teams.
Recommendations
To maximize the performance of the PCR Thermal Cycler YR06070, ensure to follow the manufacturer's recommendations for maintenance. This includes regular cleaning of the thermal block and periodic calibration to guarantee temperature accuracy. Utilize recommended consumables to avoid compatibility issues and optimize equipment performance. Additionally, take advantage of its protocol storage function to standardize processes and save time on future configurations.
