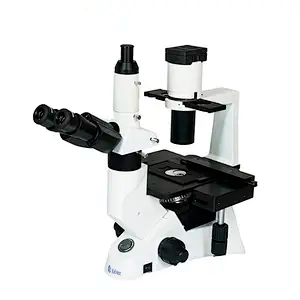

Understanding the Inverted Microscope YR0230: A Technical Glossary and Key Terminology
The YR0230 inverted microscope is a sophisticated tool widely used in laboratories for observing living cells and transparent samples. This article delves into the intricate details of the YR0230, including its technical specifications and essential terminology, enabling operators to effectively utilize this equipment.
Technical Specifications of YR0230
| Model | YR0230 |
|---|---|
| Optical System | Infinity Optical System |
| Head | Trinocular Seidentopf Head, 30° inclined |
| Eyepiece | Extra Wide Field Eyepiece EW10x/22 mm, High Eyepoint |
| Objective | Achromatic Infinity Plan LWD |
| Focusing | Coaxial coarse and fine adjustment |
| Condenser | ELWD NA0.3 Condenser |
| Illumination | Kohler External Illumination |
| Weight | 15 kg |
Key Terminology Related to YR0230
Understanding specific terminology is crucial for operating the YR0230 effectively. Below is a glossary of key terms that you will often encounter:
| Term | Definition |
|---|---|
| Achromatic Objective | An objective lens that reduces chromatic aberration. |
| Infinity Optical System | A design that allows for improved image clarity and focus. |
| Trinocular Head | A microscope head that allows for both direct viewing and camera attachment. |
| Condenser | A lens or system that focuses light onto the sample. |
| Kohler Illumination | A method of lighting that provides uniform illumination across the sample. |
| Fine Adjustment | Refers to the precise focusing capability on the microscope. |
| Working Distance | The distance between the front lens of the objective and the specimen. |
Principles of Operation of the YR0230
The YR0230 functions based on the principles of optics, utilizing an infinity optical system that allows for clearer imaging of transparent samples. The optical path is designed to minimize light distortion while providing a wider field of view. This section will explore the scientific principles behind the YR0230's performance.
Common Setup Mistakes with the YR0230
During the initial setup of the YR0230, operators may encounter several common mistakes that can hinder optimal performance. This section will highlight these pitfalls and offer solutions to ensure a streamlined setup process.
Understanding the Result Readings from YR0230
Interpreting the results obtained from the YR0230 requires a comprehensive understanding of the units and measurements displayed. This section covers the normal ranges, expected outcomes, and potential misinterpretations that operators may face when analyzing data.
Sector Adaptations for the YR0230
The YR0230 is versatile and can be adapted for various sectors, including clinical, industrial, and educational environments. This section will delve into how the YR0230 is configured for specific applications across different fields.
Frequently Asked Questions
What are the key features of the YR0230 inverted microscope?
The YR0230 features an infinity optical system, a trinocular head for versatility, high eyepoint optics, and a range of objective lenses suitable for various microscopic applications.
How do I maintain the YR0230 microscope?
Regular maintenance includes cleaning the lenses with appropriate materials, checking the alignment of the optical components, and ensuring the illumination system is functioning correctly.
What types of samples can I observe with the YR0230?
The YR0230 is designed for observing living cells, transparent samples, and various biological materials in culture dishes and other containers.
How do I adjust the focus on the YR0230?
Focusing on the YR0230 is accomplished through a coaxial coarse and fine adjustment mechanism, allowing for precise focusing on samples at different depths.
Are there any optional accessories for the YR0230?
Yes, the YR0230 has a range of optional accessories, including additional objective lenses, fluorescent attachments, and mechanical stages for enhanced functionality.
What is the warranty period for the YR0230 microscope?
The YR0230 typically comes with a standard warranty covering parts and labor for a specified period, ensuring reliability and support for users.
How can I request a quote for the YR0230?
You can request a quote for the YR0230 by contacting our sales department through the provided channels for personalized assistance.
